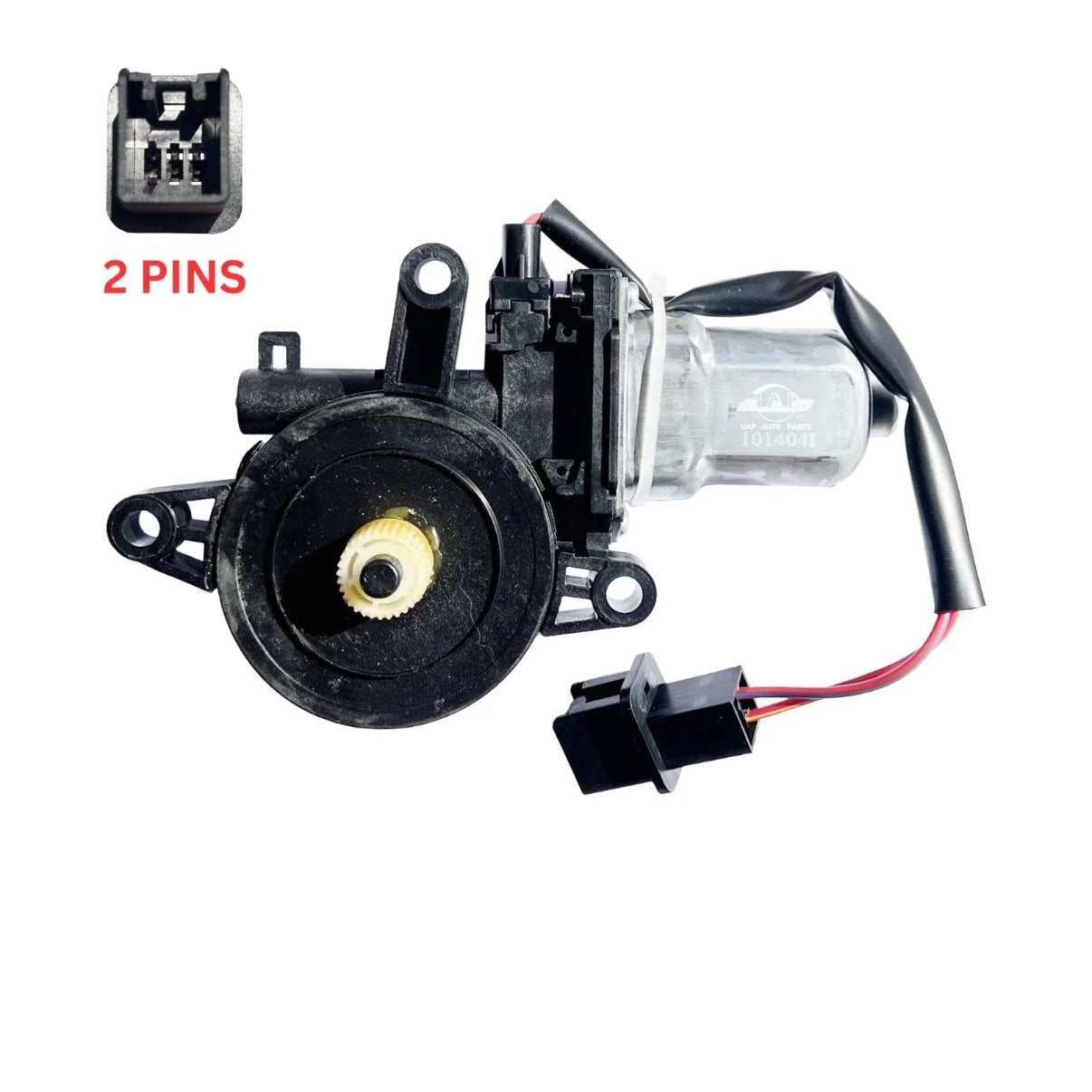

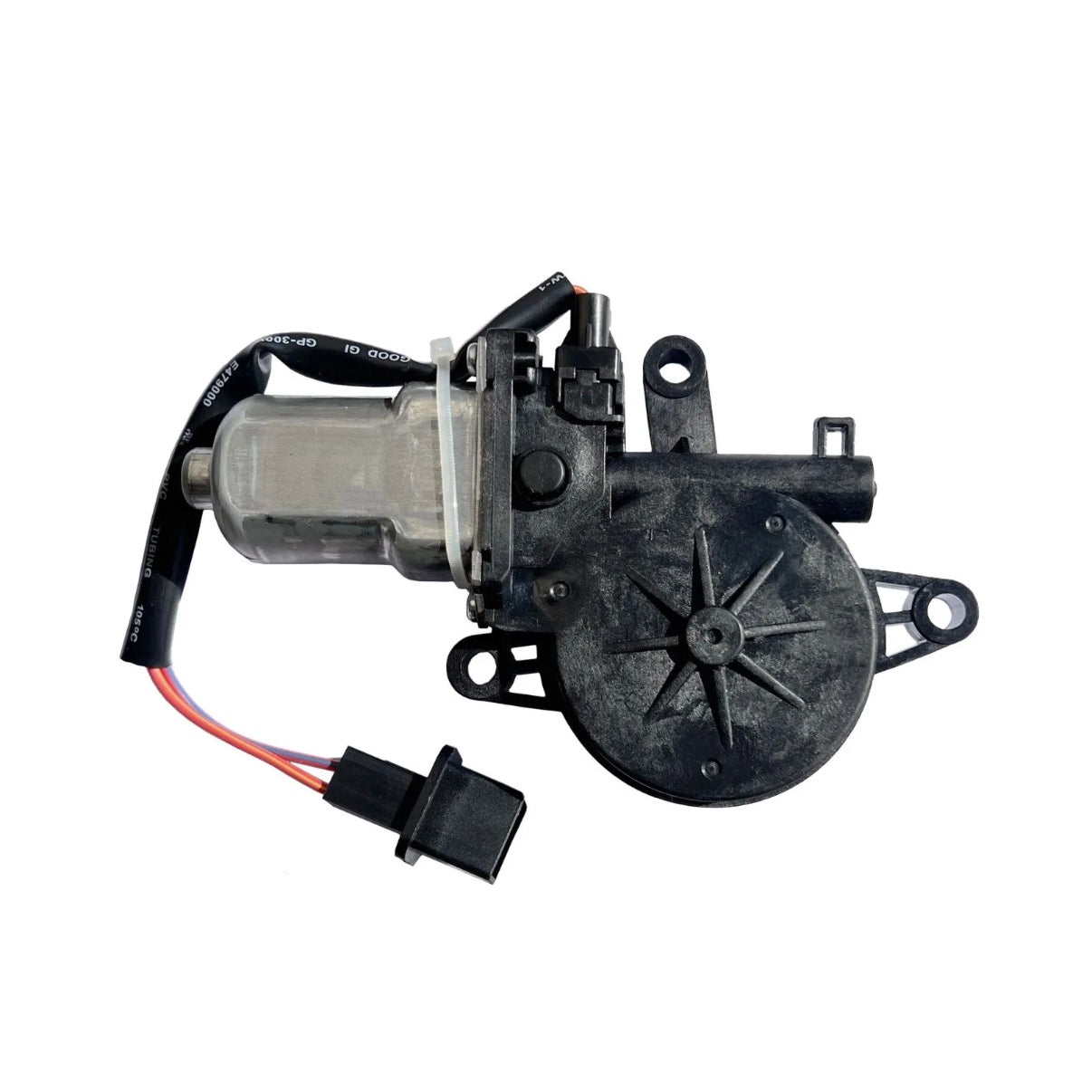

LH Window Lift Motor 2 Pins for Mazda 2 DE 07-14, 3 BL 09-13, 6 GH/GJ/GL 07-on
Product Code: Parts81-738
RRP $225.60
$185.00
18% OFF
Unit price
per
Tax included.
Couldn't load pickup availability
Description
DESCRIPTION
Product Description
| Product | : | Window Lift Motor |
| Operating Mode | : | Electric |
| Placement on Vehicle | : | Front = Rear Left (Passenger Side) |

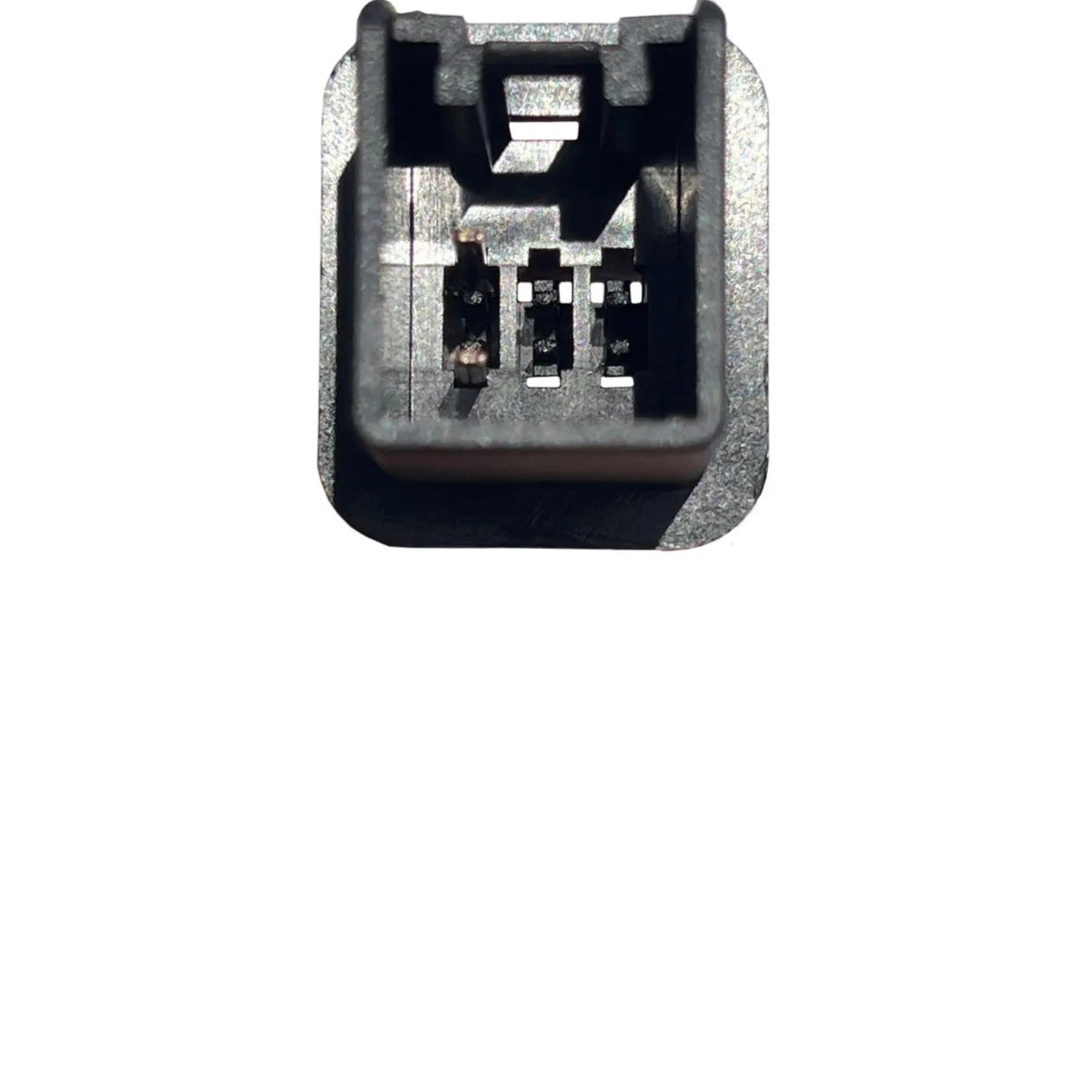

| Motor | : | 2 Pins |
| Part Specs | : | High Quality Aftermarket |
| Condition | : | Brand New |
| MPN/Item No. | : | 101404I |
| Manufacturer Warranty | : | 1 Year (Part only) |
| QTY Supply | : | 1 Piece |
Fitment
- Mazda 2 DE 07/2007 - 12/2014 (Front Left)
- Mazda 3 BL 01/2009 - 11/2013 (Front Left)
- Mazda 6 GH 09/2007 - 12/2012 (Front Left)
- Mazda 6 GJ/GL 10/2012 - On (Front Left or Rear Left)
- Mazda CX5 KE 01/2012 - 02/2017 (Rear Left)
NOTE FOR WINDOW REGULATOR MOTOR WITH ANTI-PINCH FUNCTION
Instruction for setting anti-pinch function for electric motors
– Do not test the motor before setting in the door, or the anti-pinch function will fail and must reset in the following way.
– The motors had been tested and set up correctly before they were delivered.
– Install the motor and connect with the one-touch window switch. Pull up the switch and it is correct if the window goes up all the way.
– If the window drops down after reaching its top end then the reset is necessary for the anti-pinch function.
– The motors had been tested and set up correctly before they were delivered.
– Install the motor and connect with the one-touch window switch. Pull up the switch and it is correct if the window goes up all the way.
– If the window drops down after reaching its top end then the reset is necessary for the anti-pinch function.
Instruction for the reset
Step 1: Pull the window switch very shortly to make the window go up slightly to the top.
Step 2: Pull the one-touch switch up for 3-5 seconds in the top.
Step 3: Press the window switch very shortly to make the the window go down slightly to the bottom.
Step 4: Press the one-touch switch down for 3-5 seconds in the bottom.
Step 5: Pull the one-touch switch to make window go up to the top.
Step 2: Pull the one-touch switch up for 3-5 seconds in the top.
Step 3: Press the window switch very shortly to make the the window go down slightly to the bottom.
Step 4: Press the one-touch switch down for 3-5 seconds in the bottom.
Step 5: Pull the one-touch switch to make window go up to the top.
Resetting completed if window didn't go down after reaching the top.
If it goes down after reaching to the top, please repeat the above steps until it succeed.
