Specifications

Unit Type: Starter
Voltage: 12
Rotation: CCW
Teeth/Spline : 10TH
Starter Type: PMDD

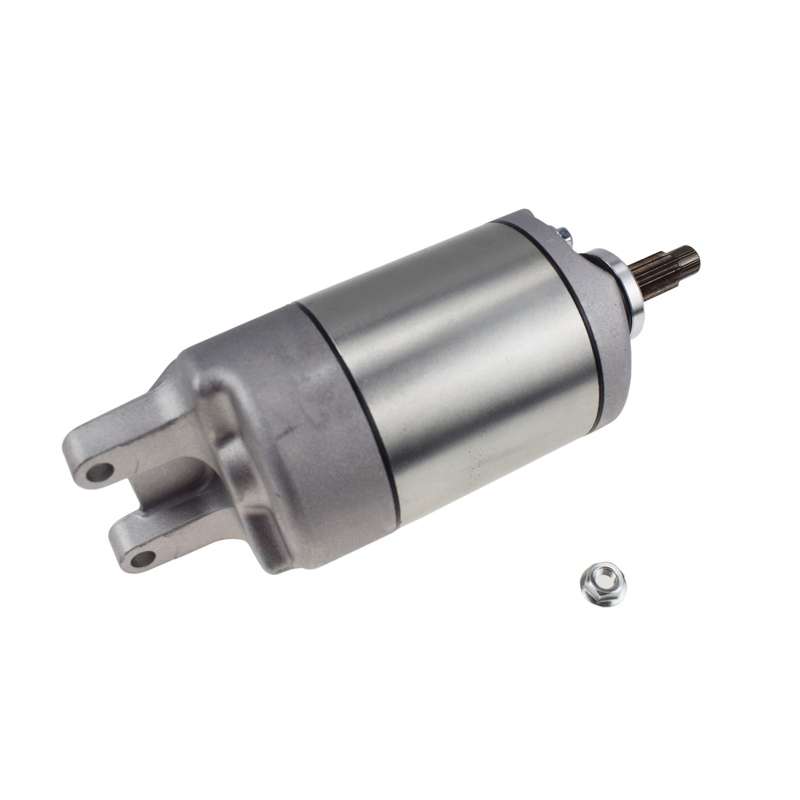

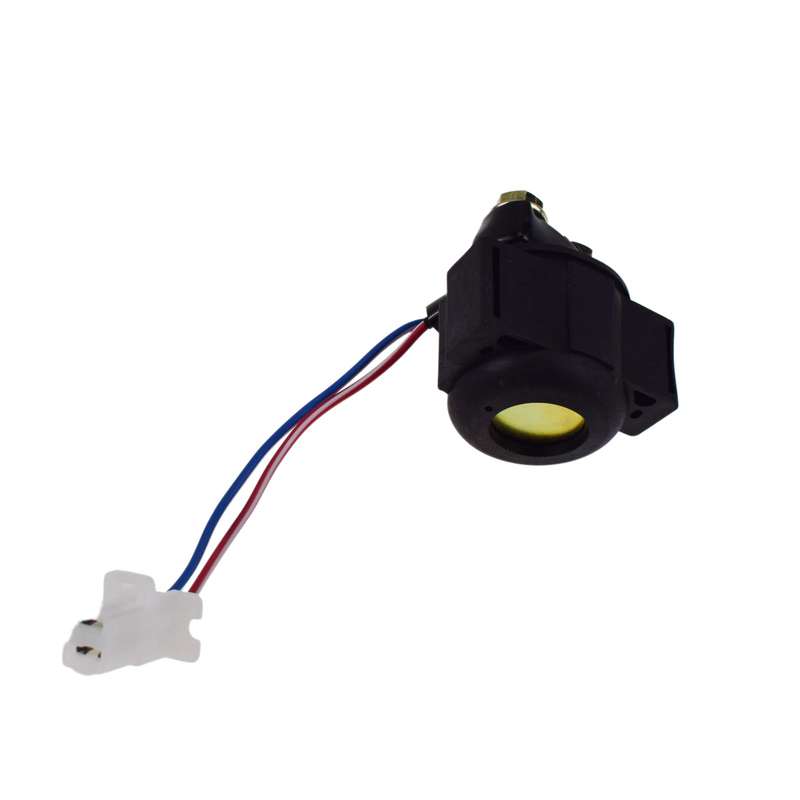

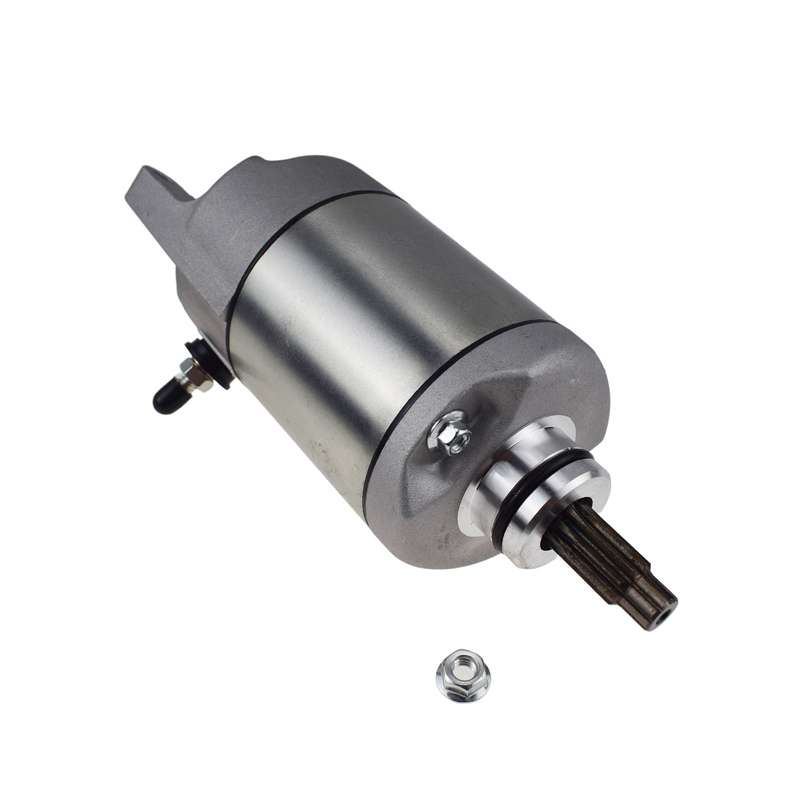

Starter Motor With Relay Solenoid

Replaces Part Number

For Honda : 31200-HA0-773, 31200-HA0-774, 31200-HA6-306, 31200-HA6-316,
31200-HA6-773, 31200-HA6-774, 31200-HC4-003, 31200-HC4-013, 31200-HC4-023, 31200-HC4-033
For Arrowhead : SMU0028 SMU0221
For J & N : 410-54001
For Lester : 18337
For Tucker Rocky : 49-5700, 495700
For Barsanco 620-001
For Cargo 111921
For Denso 128000-4400 1280004400
For Dixie MS-814
For Dixie New 242-06103
For Dubois 918337
For EMS HA-102N HA102N HA-102B HA102B HA-102A HA102A HA-102 HA102
For Hi Levle STH0028
For Mes Motorcycle &Marine ME3213
For MinnparI 57-2387
For PIC 190-529B, 191-119, 191-119A
For RCP ST-18337
For Stockers Starters HA-102, HA-102A, HA-102B
For WAI 2-2181-MT
for Wilson 91-26-2005, 9126-2005, 91-262005, 91262005, 91-26-2026, 91-26-2026N 9126-2026N 91-262026N 91262026N
For Wilson Small Eengine 71-26-18337 7126-18337 71-2618337 712618337
For Wood Auto STR70029, STR7540
For RSM RS41181

Fitment

For Honda All-Terrain Vehicle (ATV)

For Honda ATC250ES Big Red 250 1987-1988 246cc
For Honda ATC250SX 250 1987 246cc
For Honda TRX250 Fourtrax 250 1987 246cc
For Honda TRX300 FourTrax 300 1988-2000 281cc
For Honda TRX300FW FourTrax 300 4x4 1988 -2000 281cc

Package

1 x Starter Motor

1 x Relay
