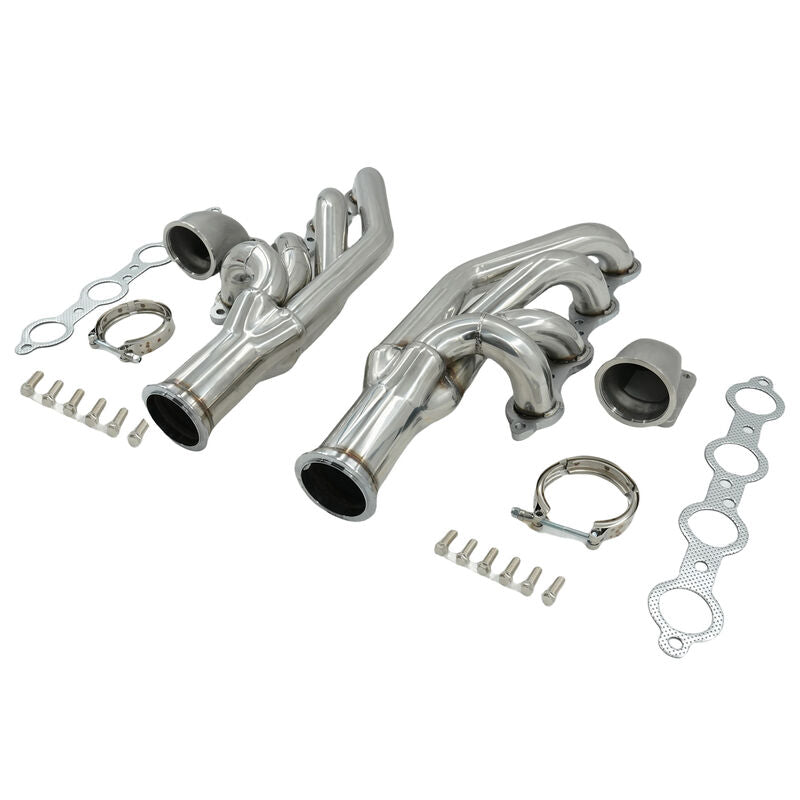

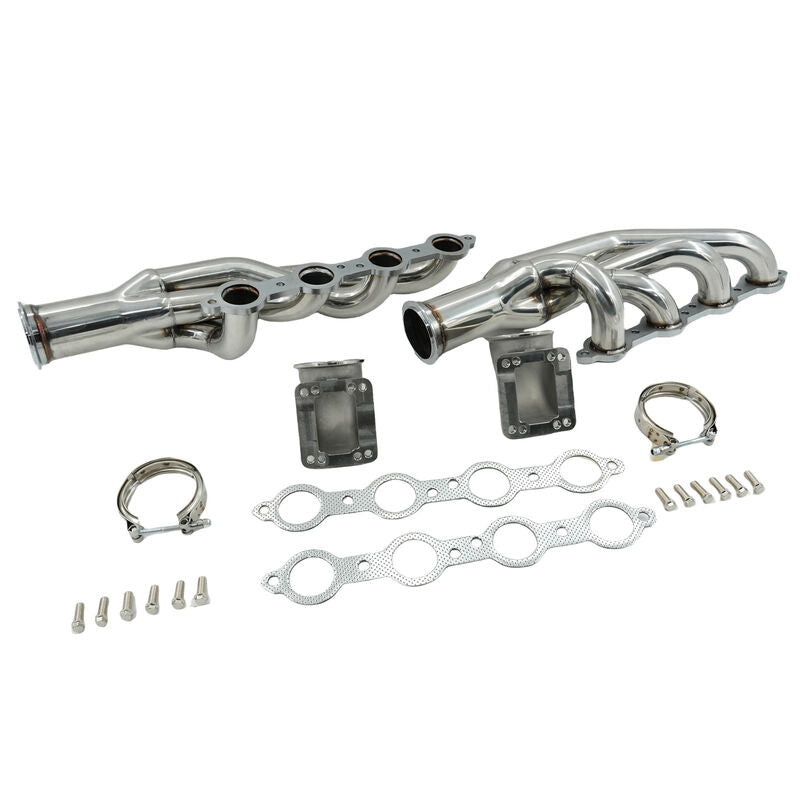

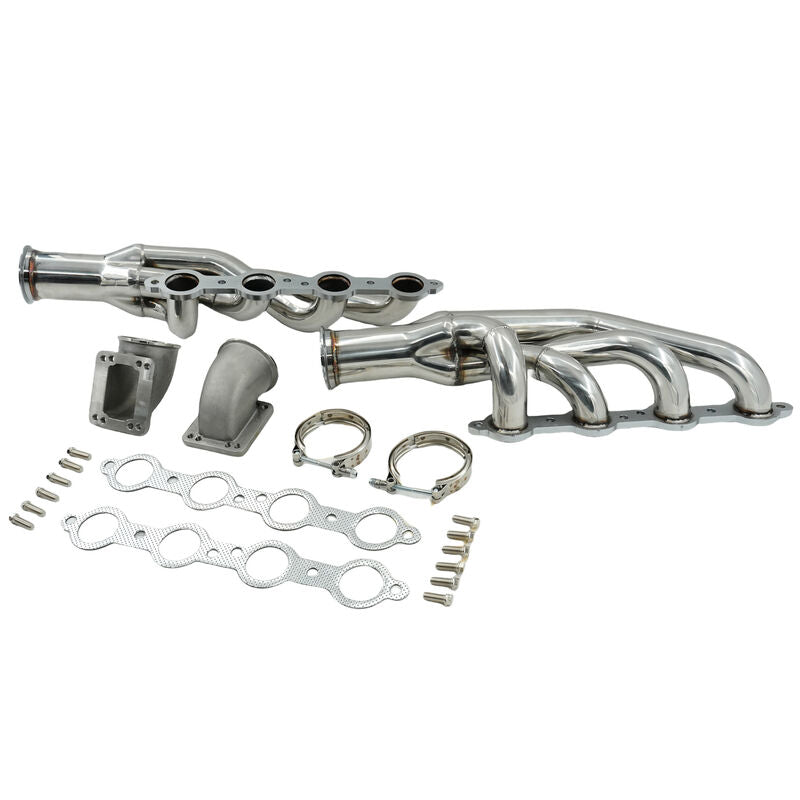

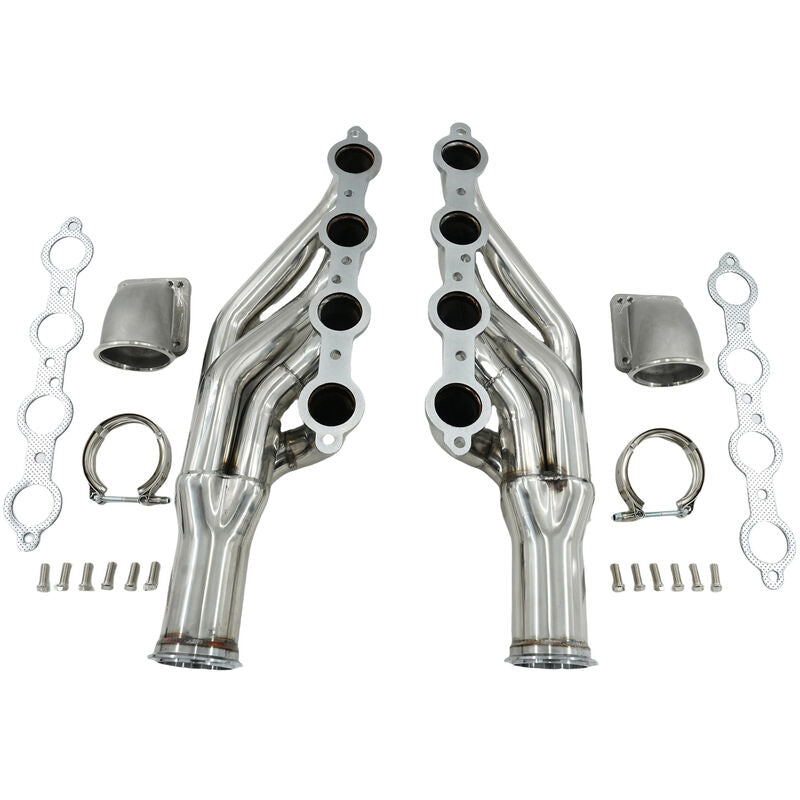

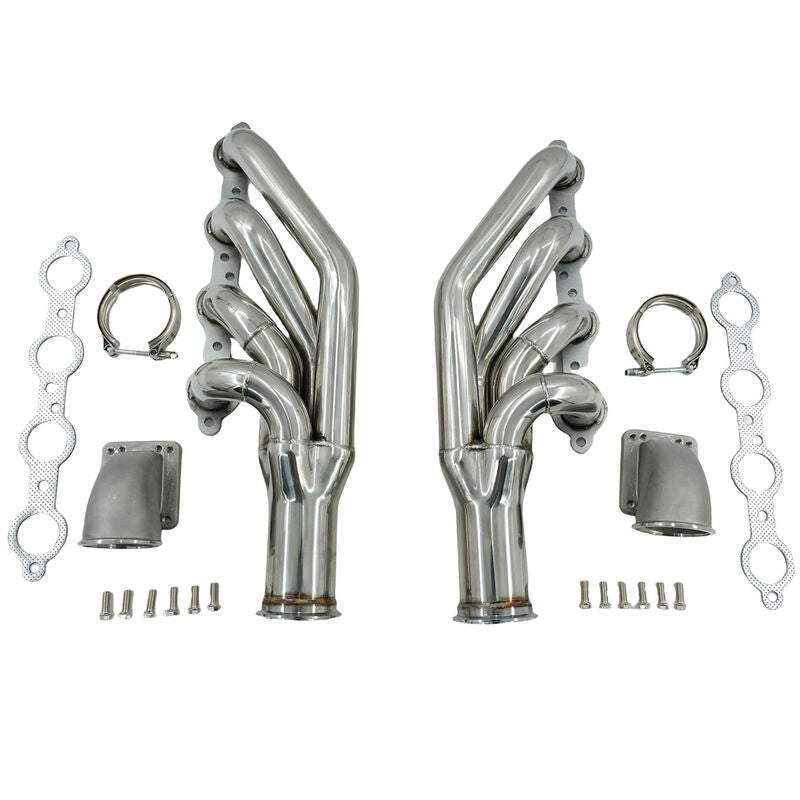

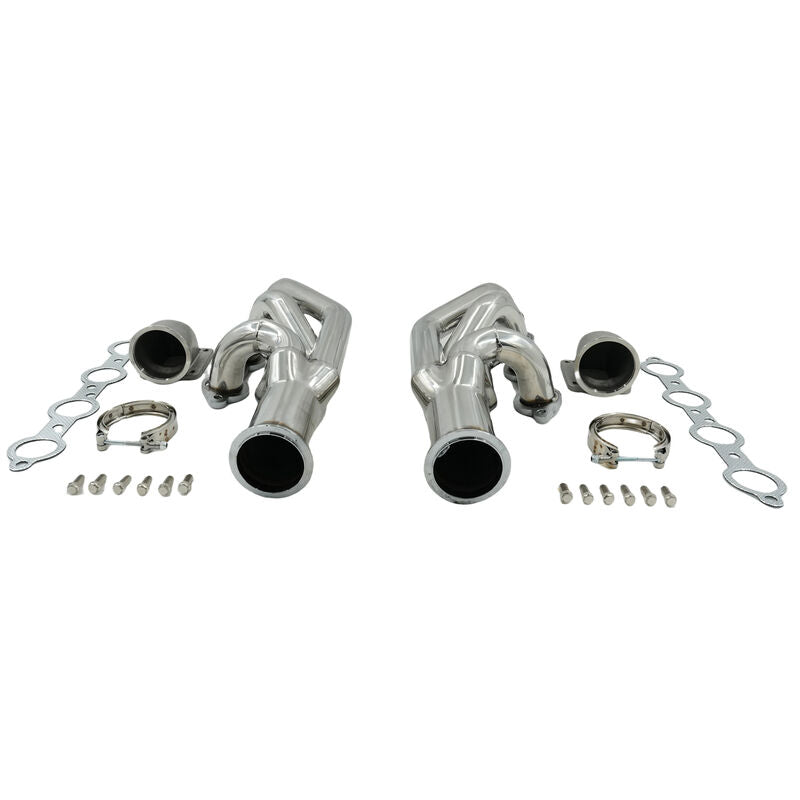

Turbo Manifold Header+Elbow Fit For Chevrolet Small Block V8 LS1 LS6 LSX Camaro Corvette For GM Cadillac CTS
Specification
Huge 1 3/4" Stainless Primary Tubes
(True 1 3/4" Unlike The Others Listing The Same Header By Multiple Companies With Multiple Sizes)
7/16" Thick Flanges 3" V-Band Collectors
CNC Mandrel Bent Pipes For Excellent Flow
4 To 1 Header Design To Create A Compact Package For Universal Applications
Professionally Tigged Welds
T3?Hole To Hole 45x86mm
T4?Hole To Hole 70x83mm
V band Flange 80mm ID 93mm OD
Cast Turbo Elbow Adapter T3 T4 To 3" V-Band SS304
304 Stainless Steel Cast And Machined Adapter, With Tight Radius.
Works For Many Turbo Applications.
V Band Flange Allows Rotation Of The Turbo At Any Angle.
Flange Is Threaded With 4 M10x1.5 Holes
Left And Right Not Same Length
Fitment
Fit For Chevrolet Small Block V8 LS1/LS2/LS3/LS6 LSX 4.8L, 5.3L, 5.7L, 6.0L, 6.2L
Fit For Chevrolet Camaro 5.7L/6.2L 1998-2014
Fit For Chevrolet Corvette 5.7L/6.0L/6.2L 1998-2014
Fit For Cadillac CTS 5.7L/6.0L/6.2L 2004-2013
Package
1 Pair x Exhaust Manifold Stainless Steel
2 x Gaskets With Bolts + 2 Clamps With V Bands
2 x Cast Elbow Adapter
| SKU | ECC-LS002 |
| Brand | AUTOPARTS |
| Shipping Weight | 9.0500kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.145m |
| Shipping Length | 0.660m |
| Shipping Cubic | 0.034452000m3 |
