Specification

Type?2:1 Reduction

Input Shaft?25mm Diameter, 60mm Long

Input Shaft Keyway?7mm

Input Mounting Holes?90mm Square

Output Shaft?22mm Diameter, 50mm Long

Output Shaft Keyway?7mm

Output Mounting Holes?70mm Square

Note

The Gearbox Is Supplied Without Oil, And Requires Oil Before Use.

This Is Typically The Same As You Would Use In The Engine Sump i.e An SAE30 4-Stroke

Small Engine Oil.

Fitment

Fit For Honda GX240 - GX390 Range And Most Chinese 9hp To 13hp Clone Engines With

25mm Diameter And 60mm Long Output Shafts, Also Known As The L Type PTO Shaft Option.

Note?Requires A 60mm long, 25mm Diameter Crankshaft Input, Output Is To A 22mm Shaft,

Also Known As The R Type PTO Shaft.

Ready To Assemble, They Give Incredible Torque At Lower Engine Speeds, And Are Ideal

Replacements On Go-Karts, Mixers, Pumps Etc.

Package

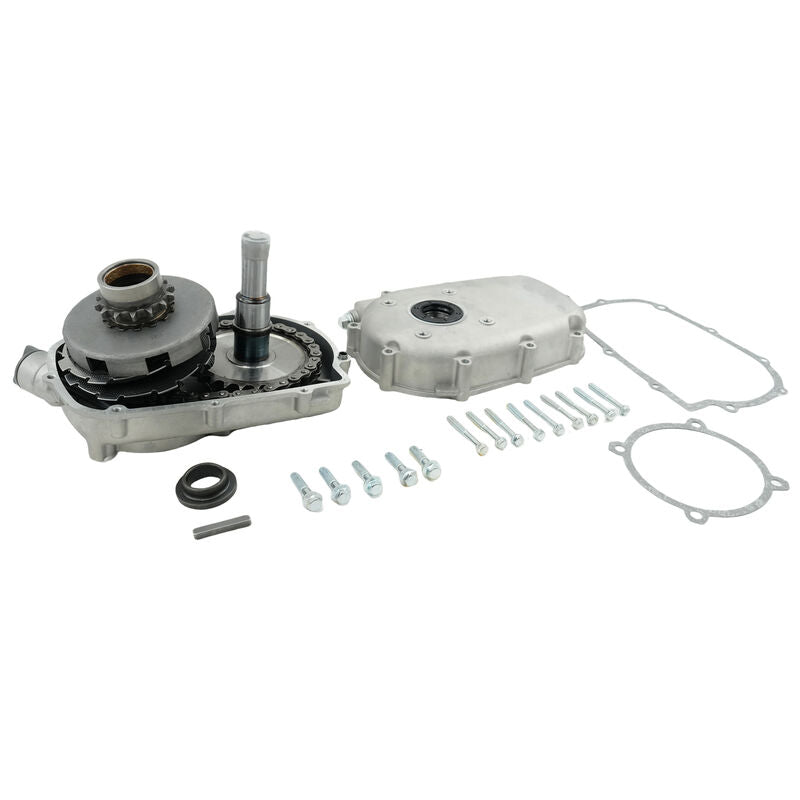

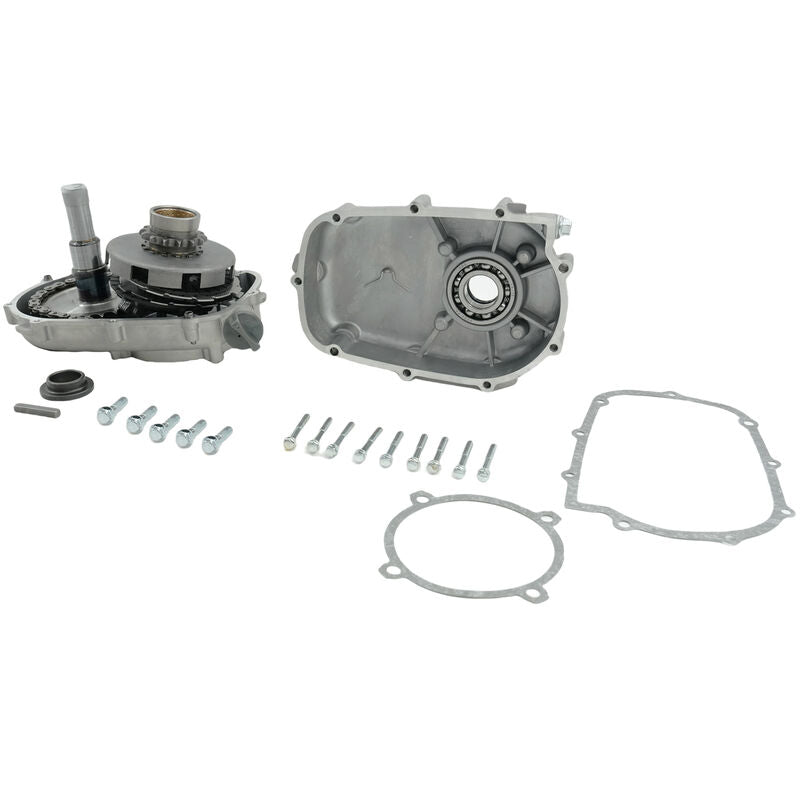

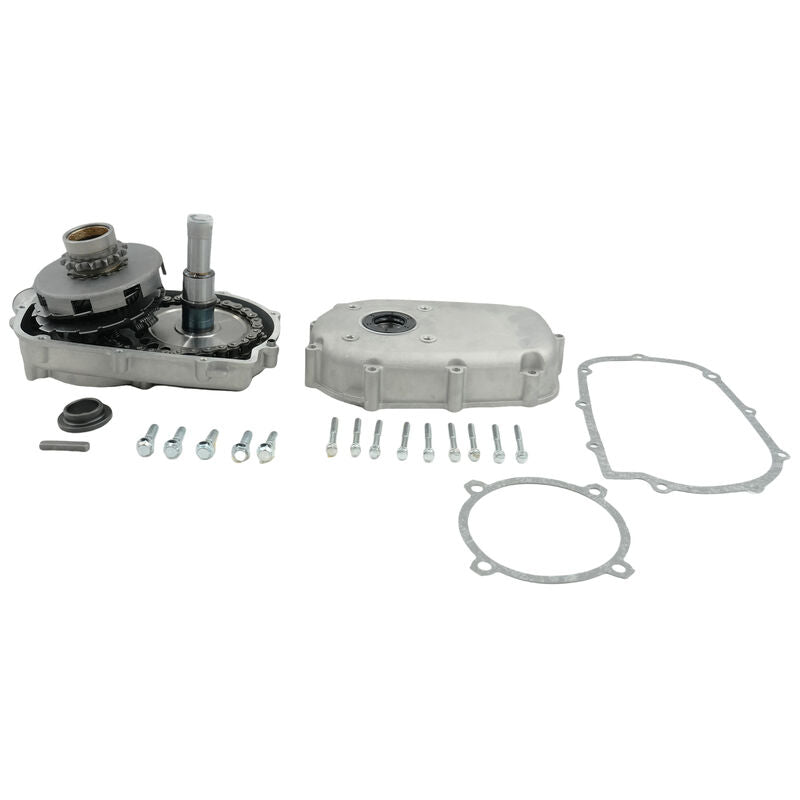

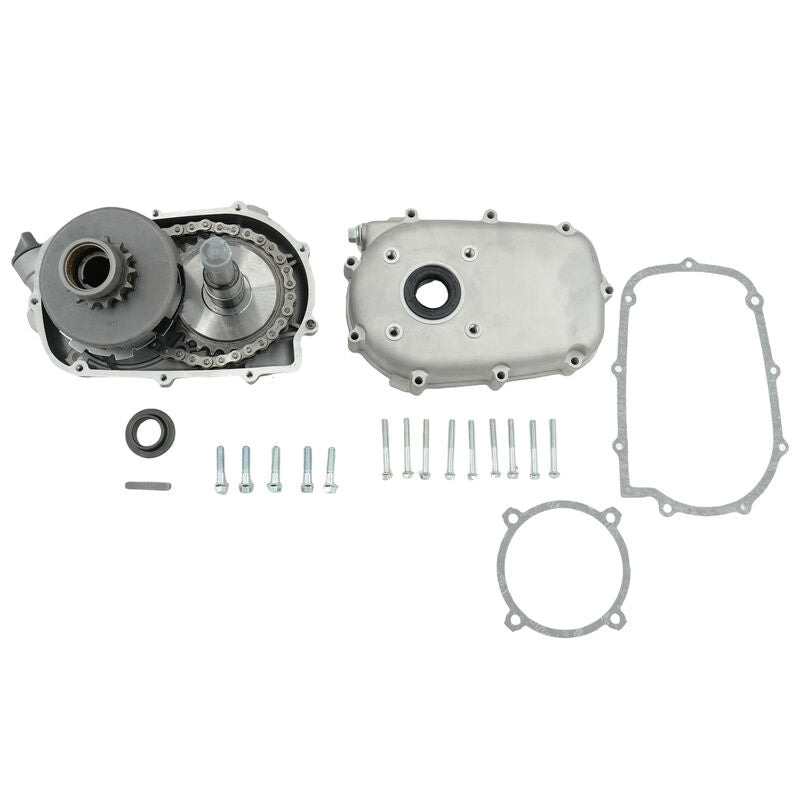

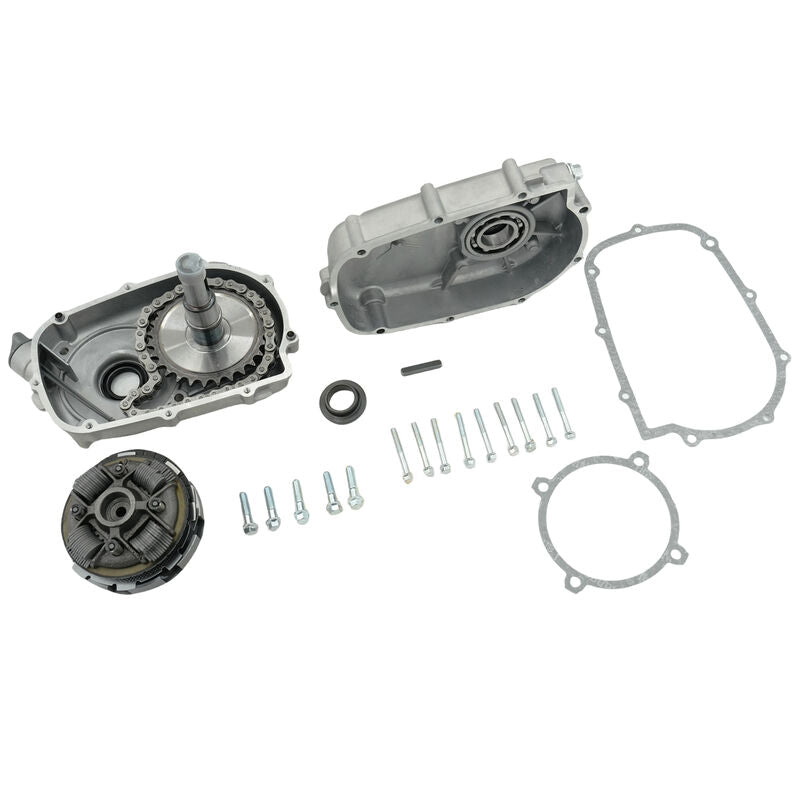

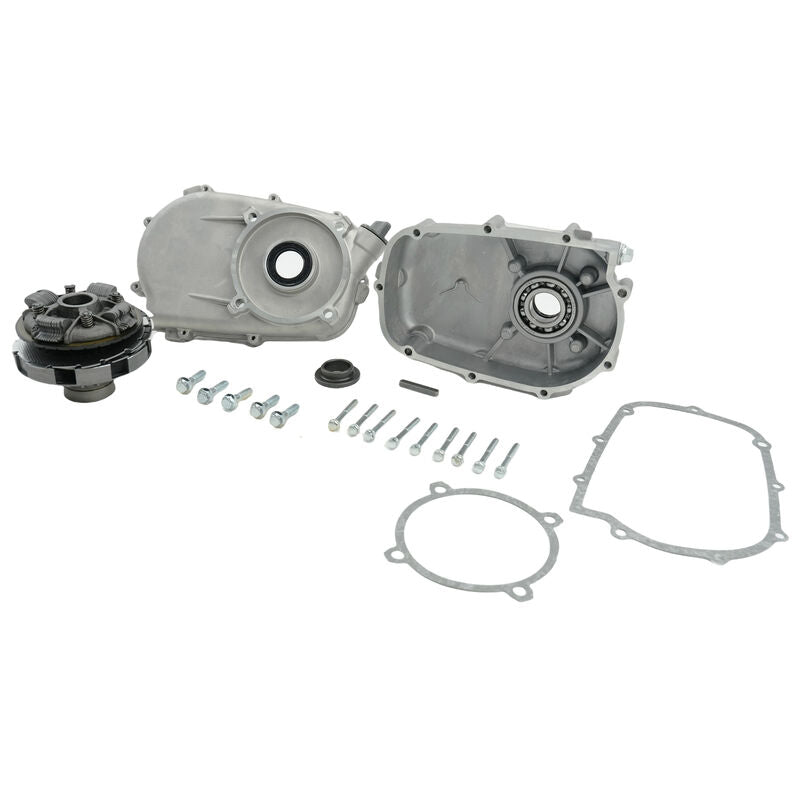

1 Set x Wet Clutch
