Specification
ABS: Yes
Bolt Circle Diameter (MM): 100
Bolt Circle Diameter (IN): 3.934
Brake Pilot Diameter (MM): 57.9
Flange Bolt Hole Quantity: 4
Flange Diameter (MM): 124
Flange Offset (MM): 65.5
Hub Pilot Diameter (MM): 84
Spline Quantity: 25
Wheel Pilot Diameter (MM): 55.9
Wheel Stud Quantity: 5
Fitment
Fit For Suzuki S-Cross JY YAA2S 2014-2024 (Front Wheel Drive)
Fit For Suzuki Swift Sport AZ ZC33S 01/2018-2024 With Built In Studs
Fit For Suzuki SX4 RW420 2007-2014 For FWD Only, With Built In Studs
Fit For Suzuki Vitara LY DA1S YD21S 2015-2024 (Front Wheel Drive)
Note: 2 Types Wheel Bearing Hub For These Models. Please Confirm Before Purchasing.
Package

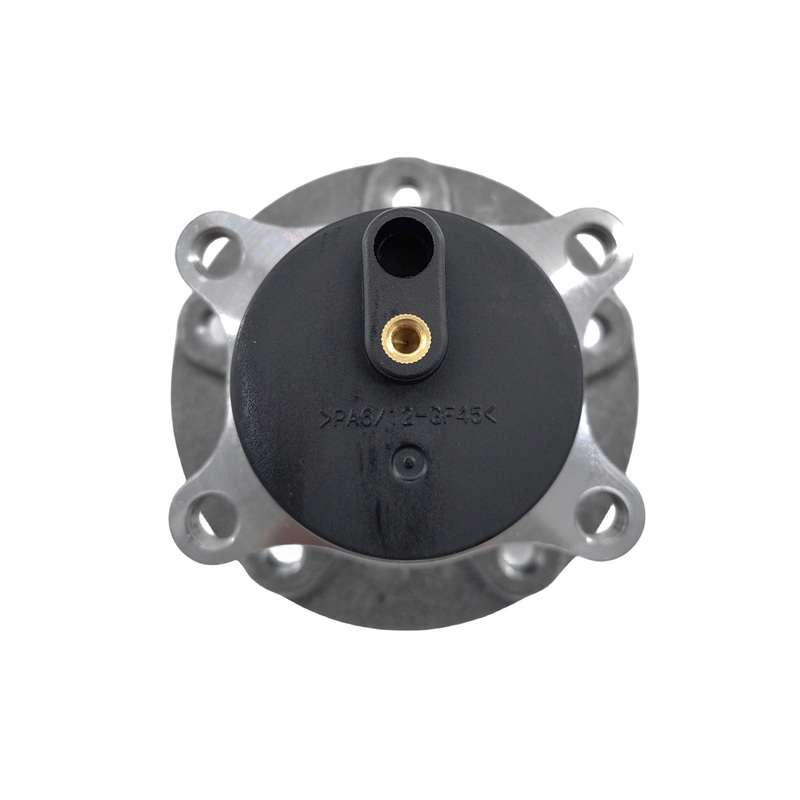

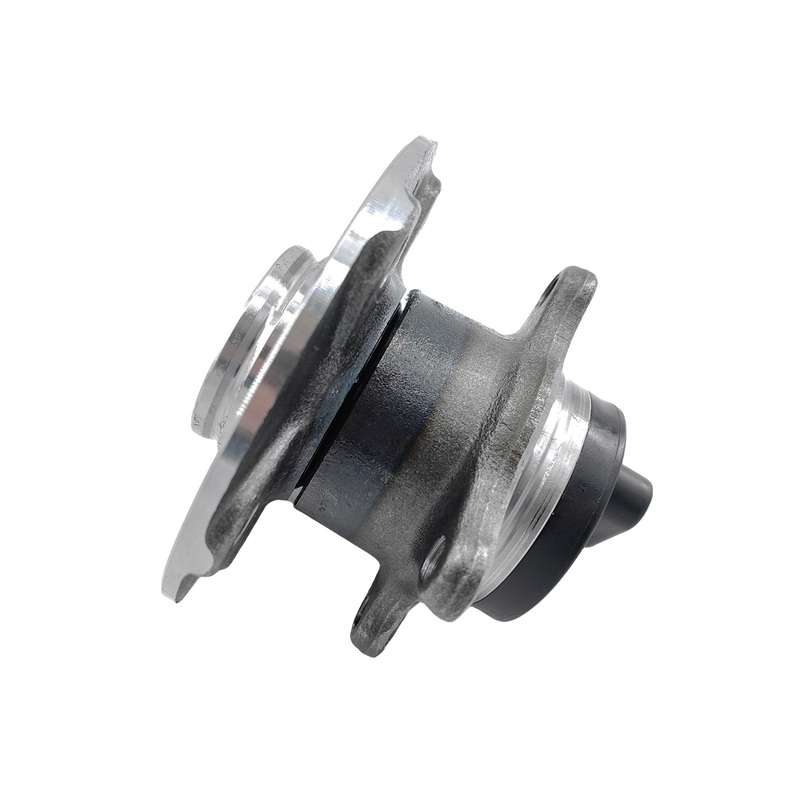

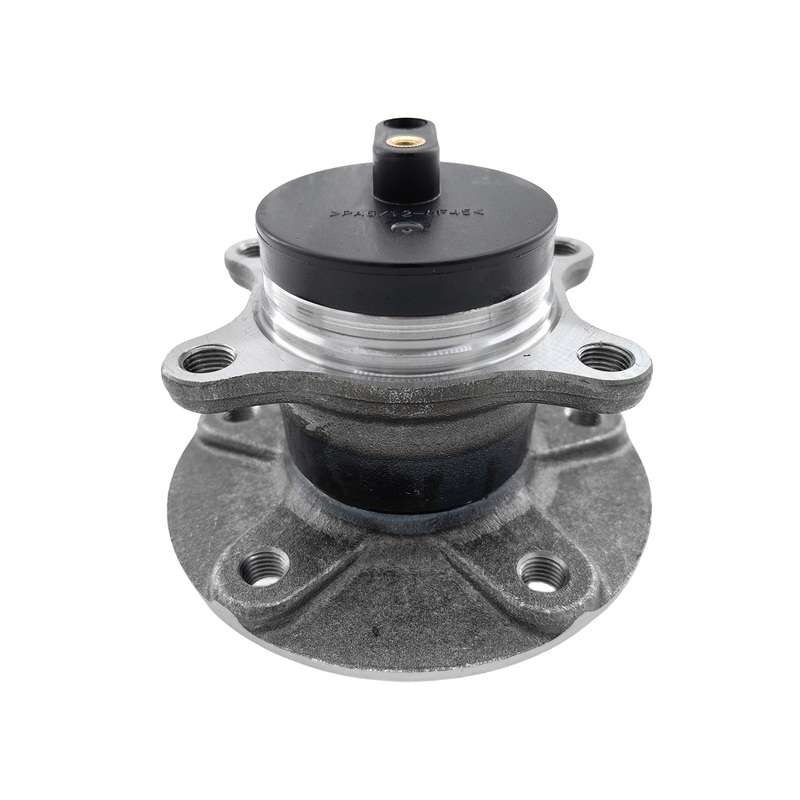

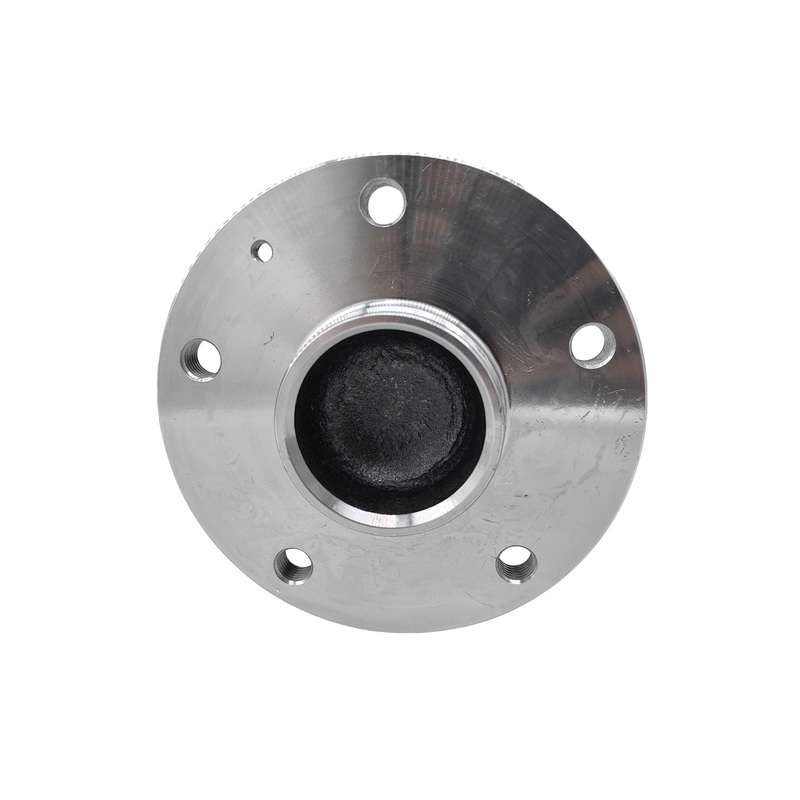

1 x Rear Wheel Bearing Hub Assembly
| SKU | WH-SZK004-1PCS |
| Brand | Aftermarket AUTOPARTS |
| Shipping Weight | 3.1000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.145m |
| Shipping Length | 0.165m |
| Shipping Cubic | 0.003828000m3 |
