12 Point Head Stud Kit Fit For Chevrolet Small Block 350
Specification
ATP Head Stud Kit With 12 Point Nuts
8740 Grade Material
Torque Recommendations: 75 ft. lbs Or 101Nm
Fitment
Fit For Chevrolet Small Block 350

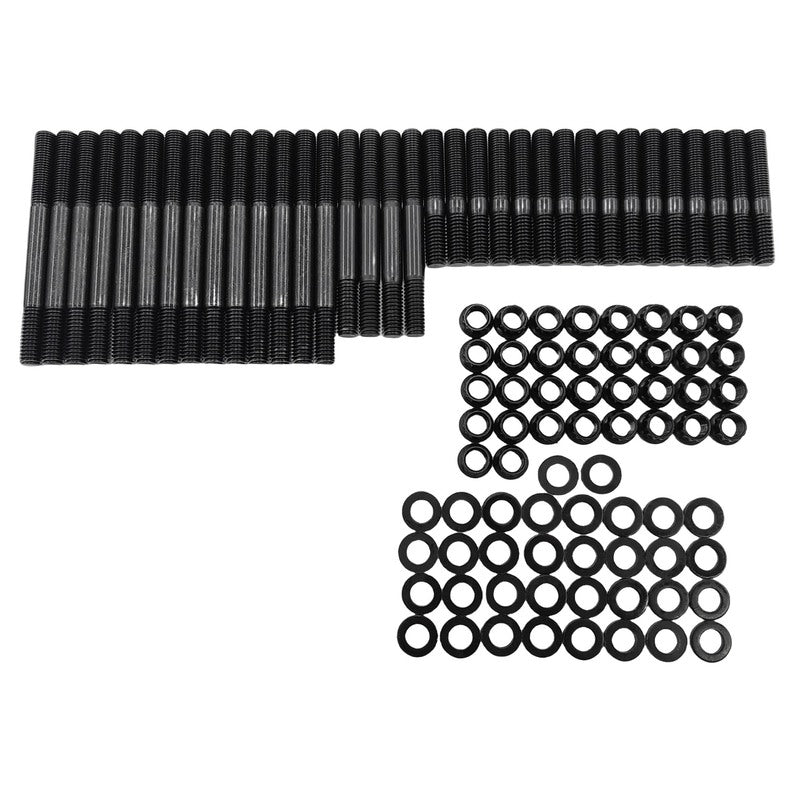

Package

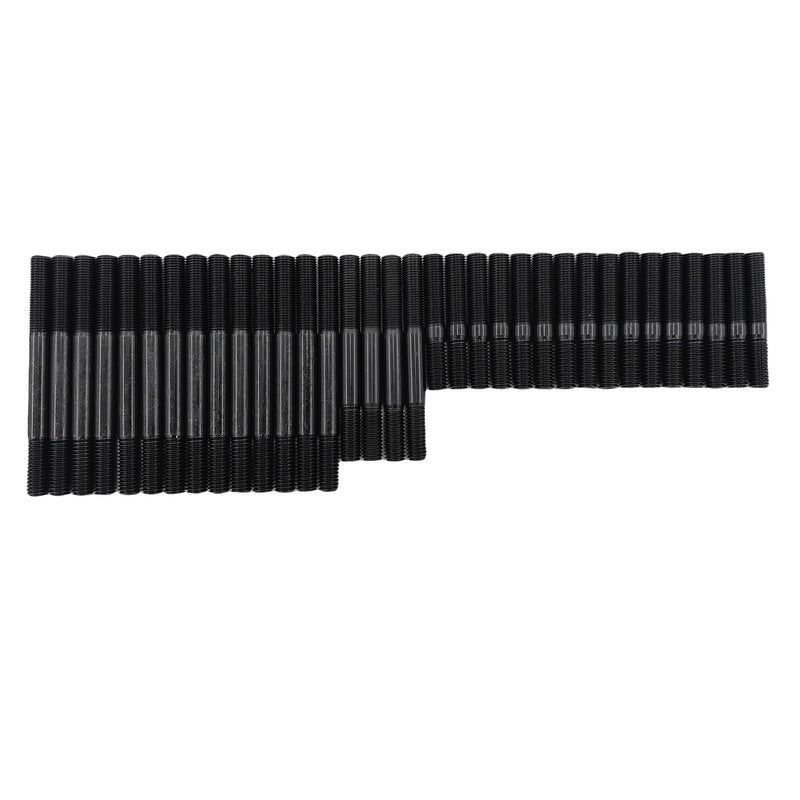

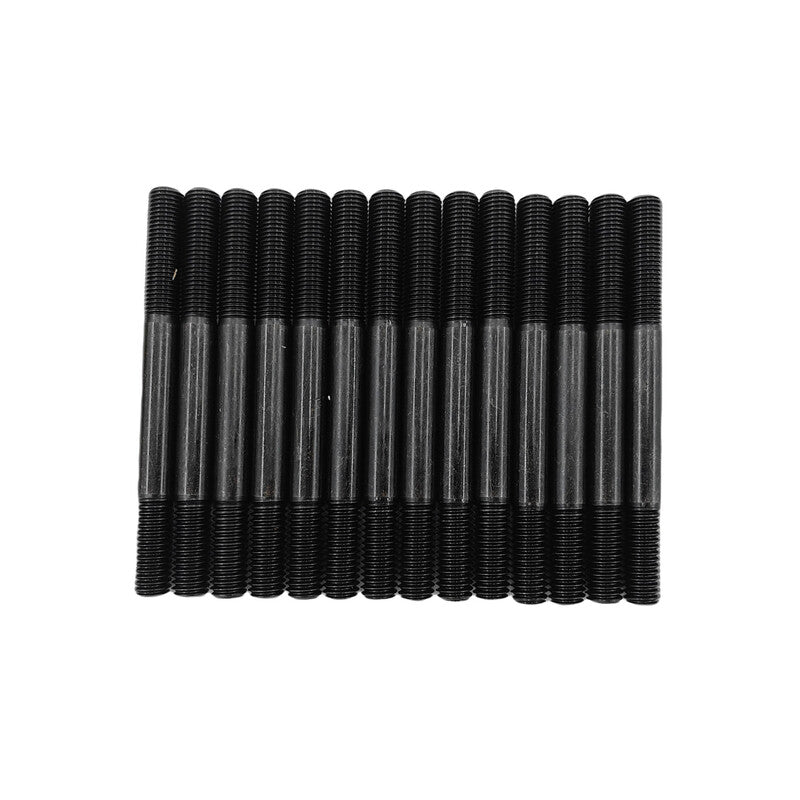

14 x Long Studs
119.20mm Overall Length
47mm Shank Length
7/16”-14 Thread Into Engine Block
7/16”-20 Thread On Nut End

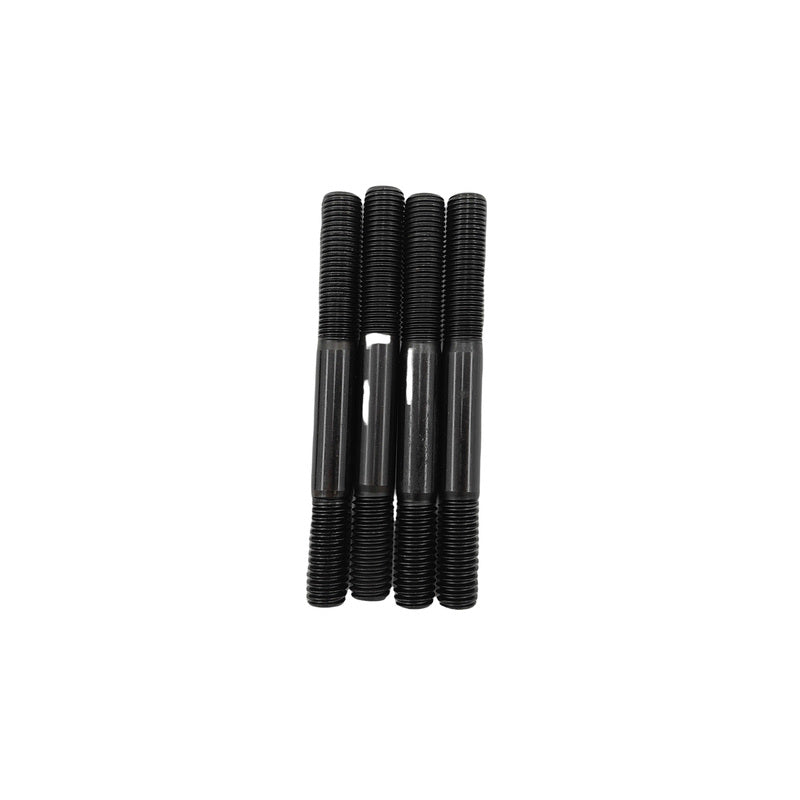

4 x Mid Studs
102.80mm Overall Length
31mm Shank Length
7/16”-14 Thread Into Engine Block
7/16”-20 Thread On Nut End

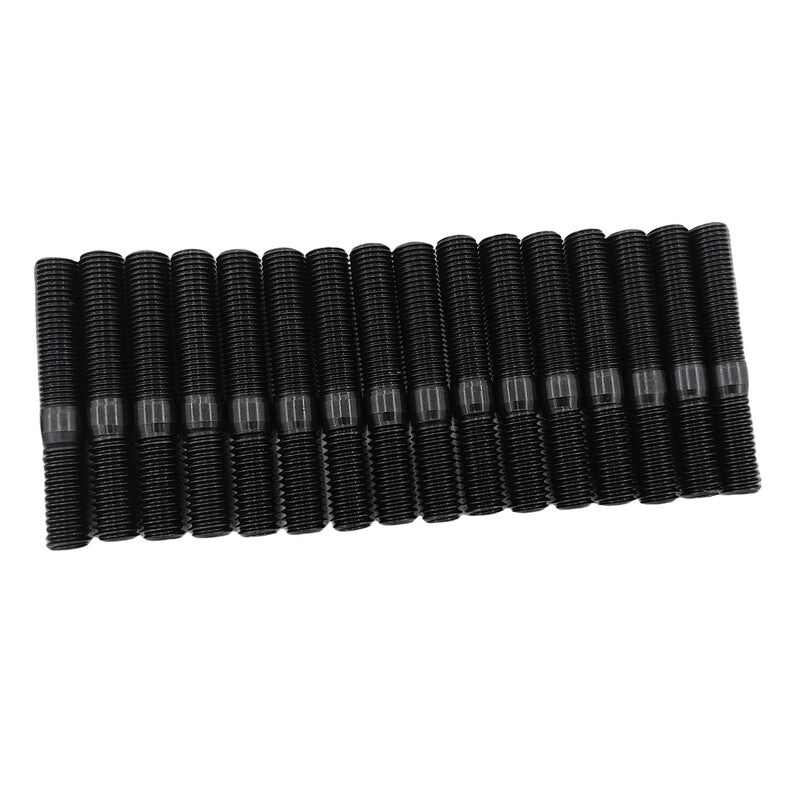

16 x Short Studs
69.50mm Overall Length
5mm Shank Length
7/16”-14 Thread Into Engine Block
7/16”-20 Thread On Nut End

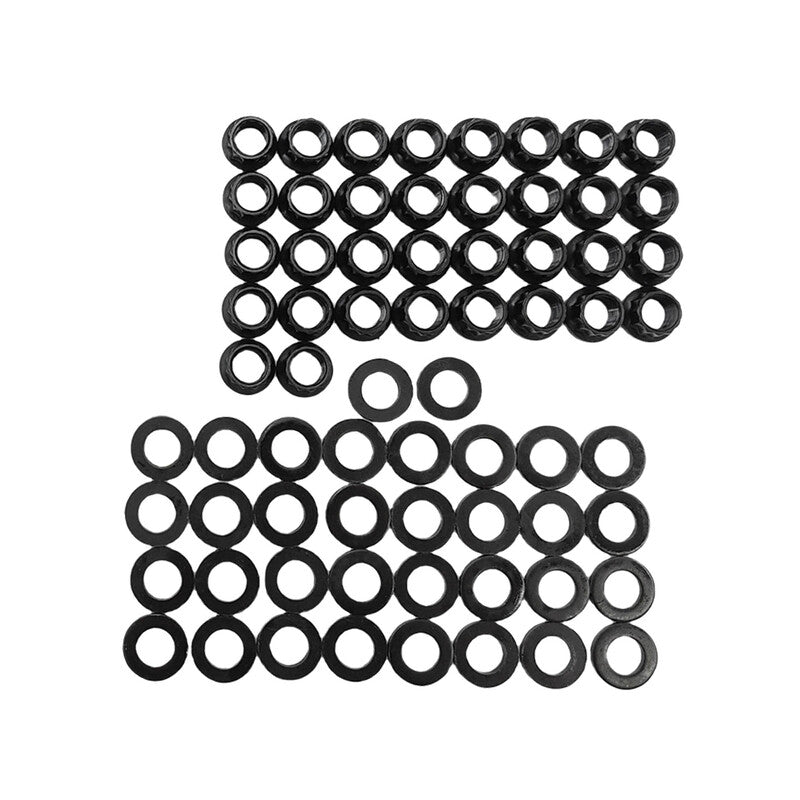

34 x 12 Point Nuts
7/16”-20 Thread
18.15mm Outside Diameter
11.60mm Height
34 x Flat Washers
19.80mm Outside Diameter
11.20mm Inside Diameter
3mm Thickness
| SKU | HSTUD-LS001 |
| Brand | AUTOPARTS |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.155m |
| Shipping Cubic | 0.000775000m3 |
