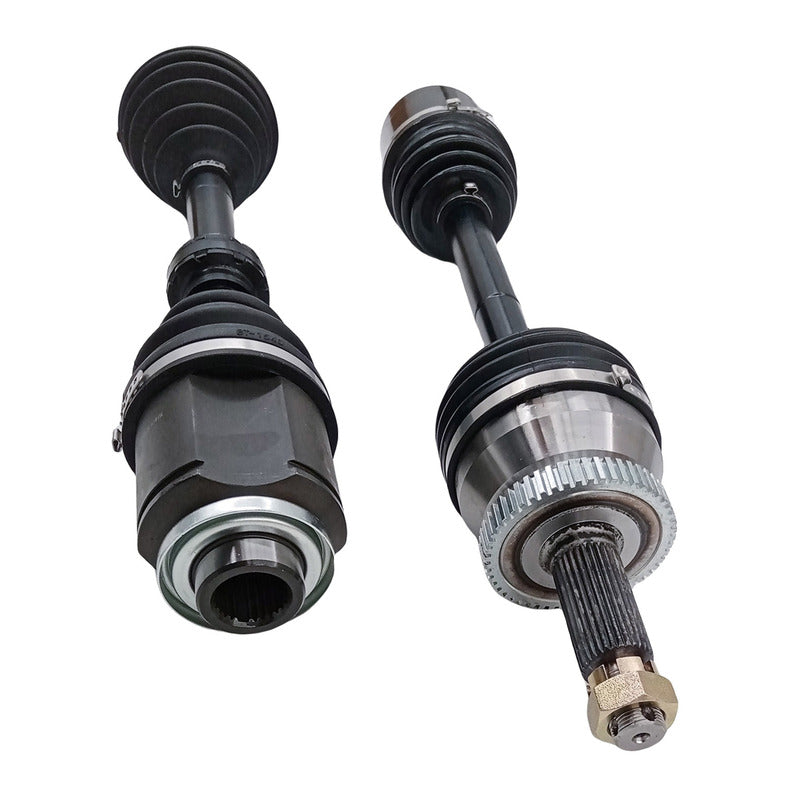

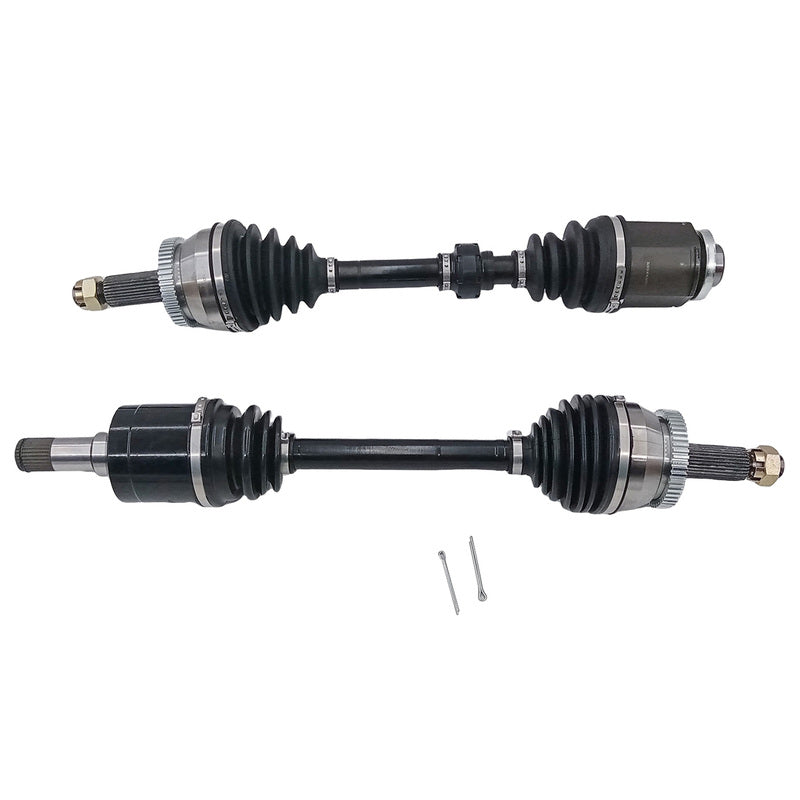

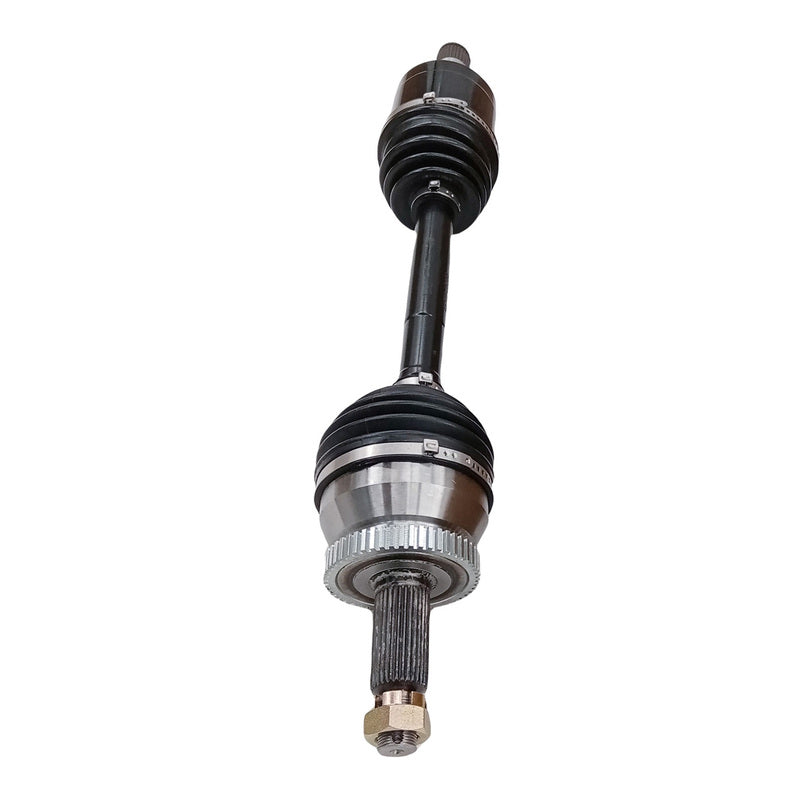

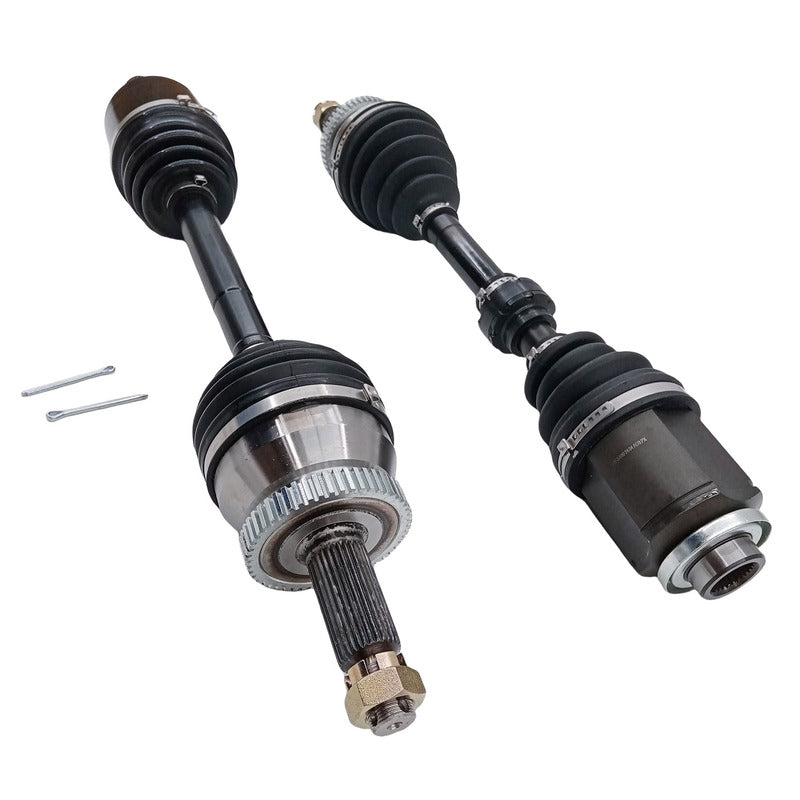

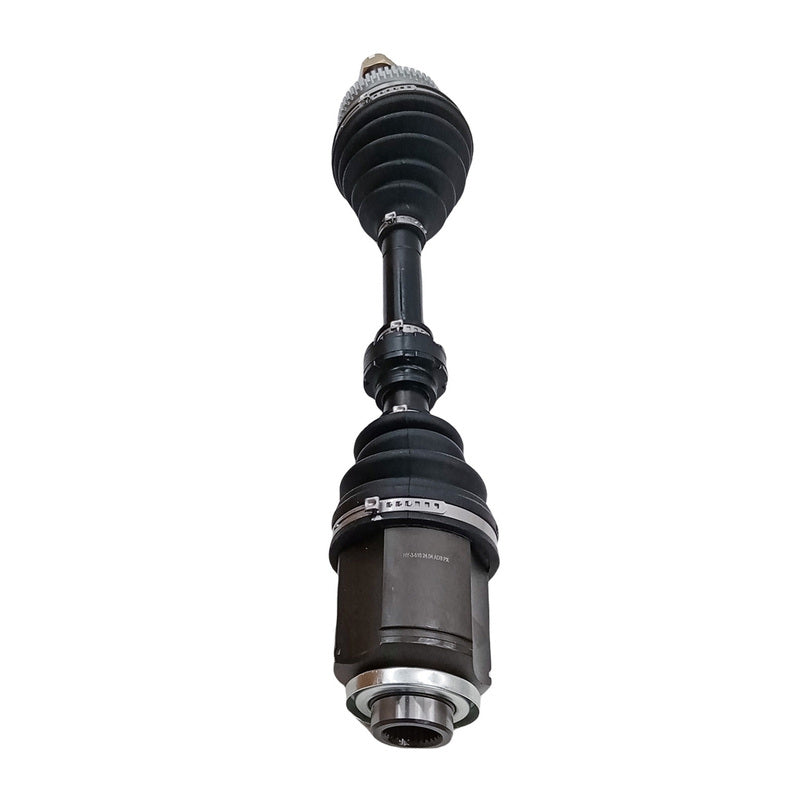

2 x Front CV Joint Axle Drive Shaft Fit For Hyundai Santa Fe CM 2.2L D4EB 3.3 G6DB 2006-2009
Specifications
Left Hand Side
Length (Compressed): 656mm
Spline Count - Outer/Wheel Side: 30
Spline Count - Inner/Diff Side: 28
ABS Ring Teeth: 52
Right Hand Side
Length (Compressed): 611mm
Spline Count - Outer/Wheel Side: 30
Spline Count - Inner/Diff Side - Female: 26T and 2 Keyway Slots
ABS Ring Teeth: 52
Hub Nut: M22 x 1.5
Fitment
Fit For Hyundai Santa Fe CM SH81W SG81W 2.2L D4EB 4WD MT AT 11/2006 - 10/2009
Includes Sub-models SX CRDi, SLX CRDi, Elite CRDi
Fit For Hyundai Santa Fe CM SH81E SG81E 3.3L G6DB 07/2007 - 11/2008
Includes Sub-models SX, SLX
Package
2 x CV Joint Drive Shafts (Front Left + Right Hand Side)
| SKU | CVS-HY008-2PCS |
| Brand | AUTOPARTS |
| Shipping Weight | 19.0000kg |
| Shipping Width | 0.252m |
| Shipping Height | 0.140m |
| Shipping Length | 0.735m |
| Shipping Cubic | 0.025931000m3 |
