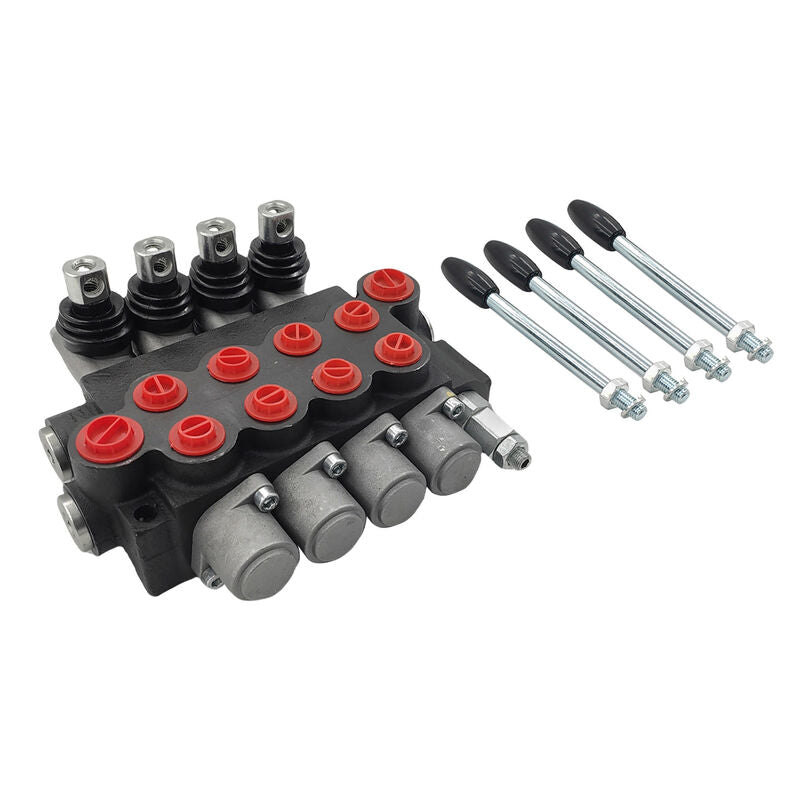

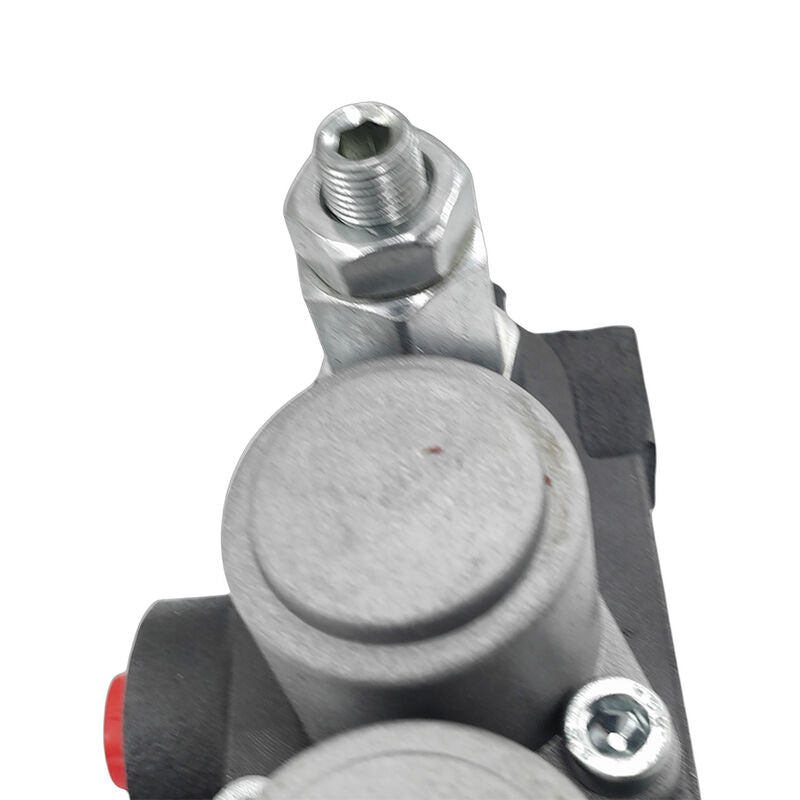

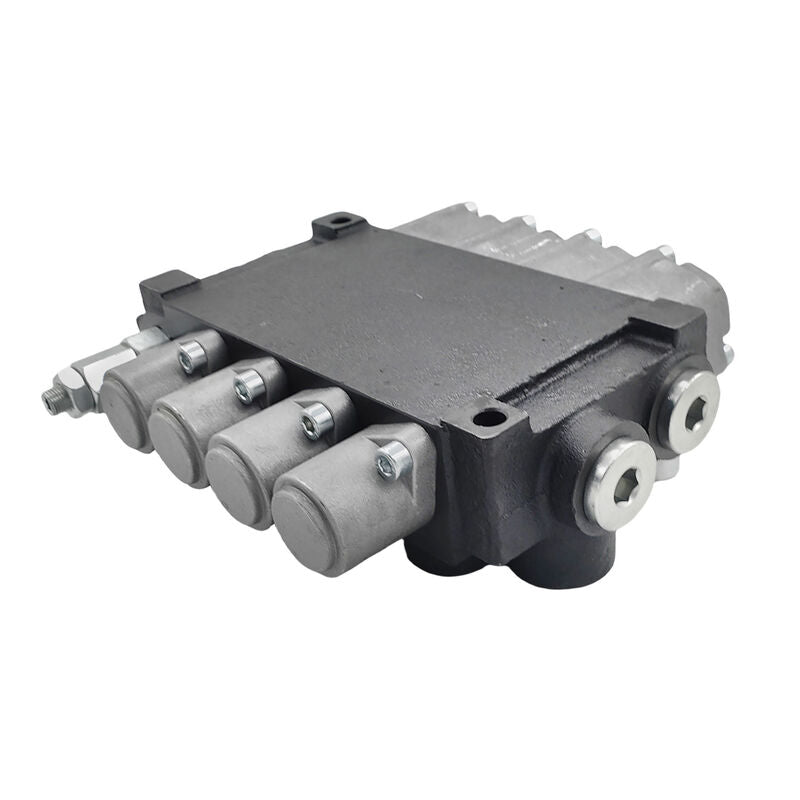

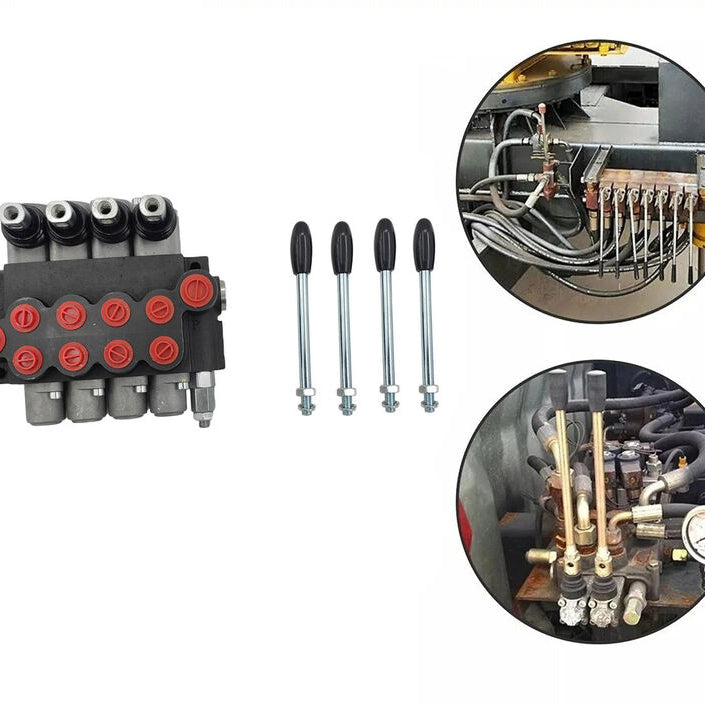

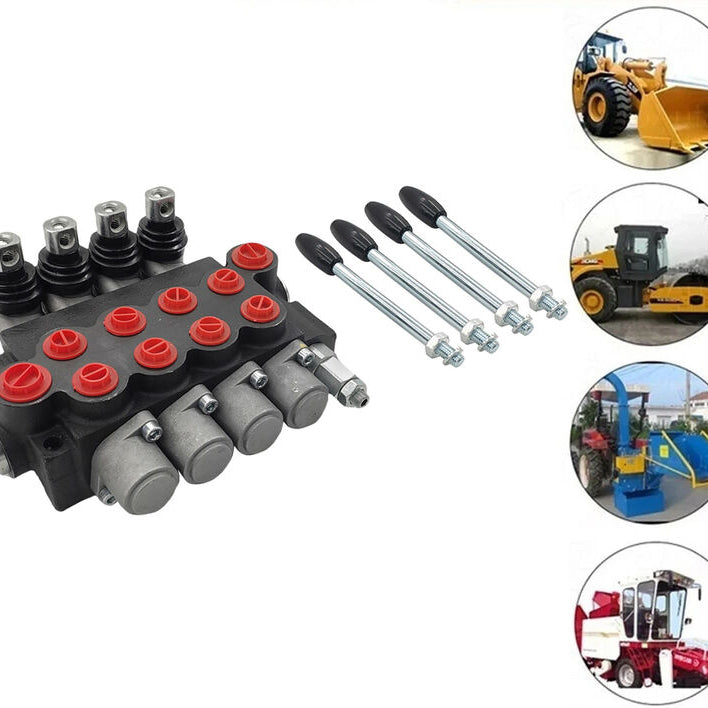

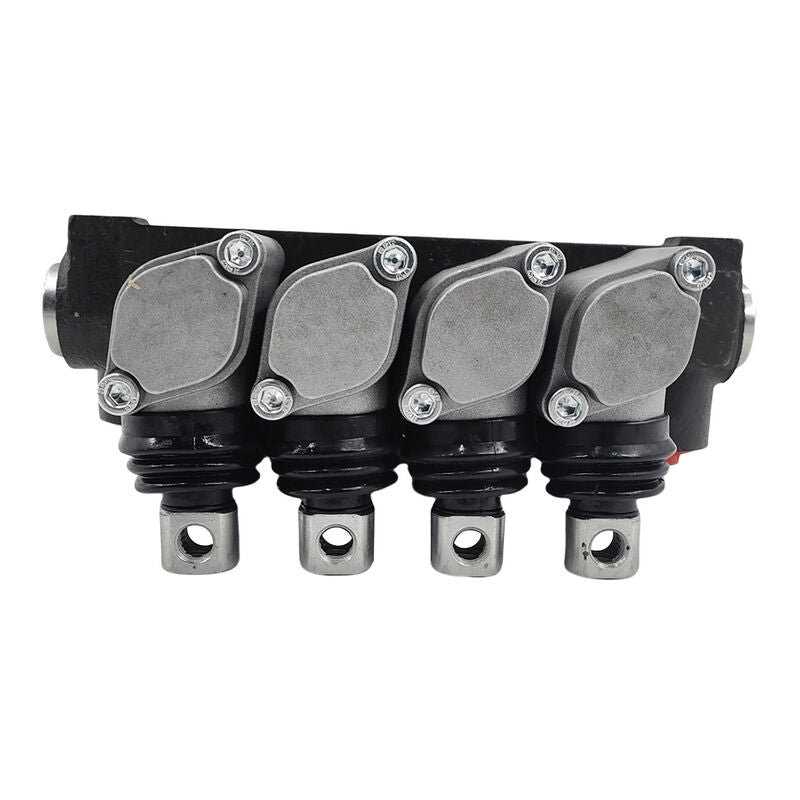

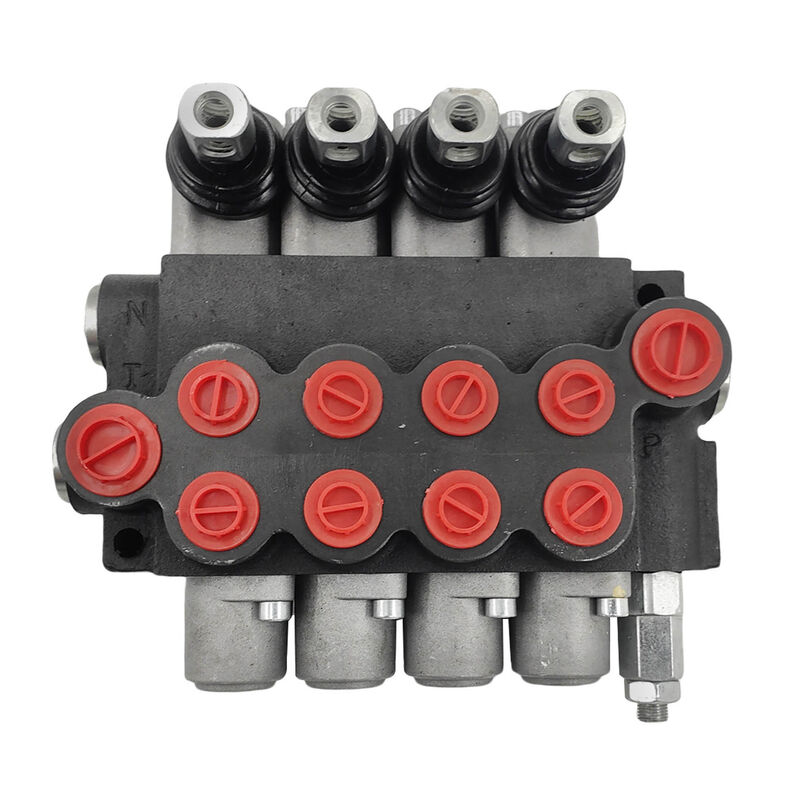

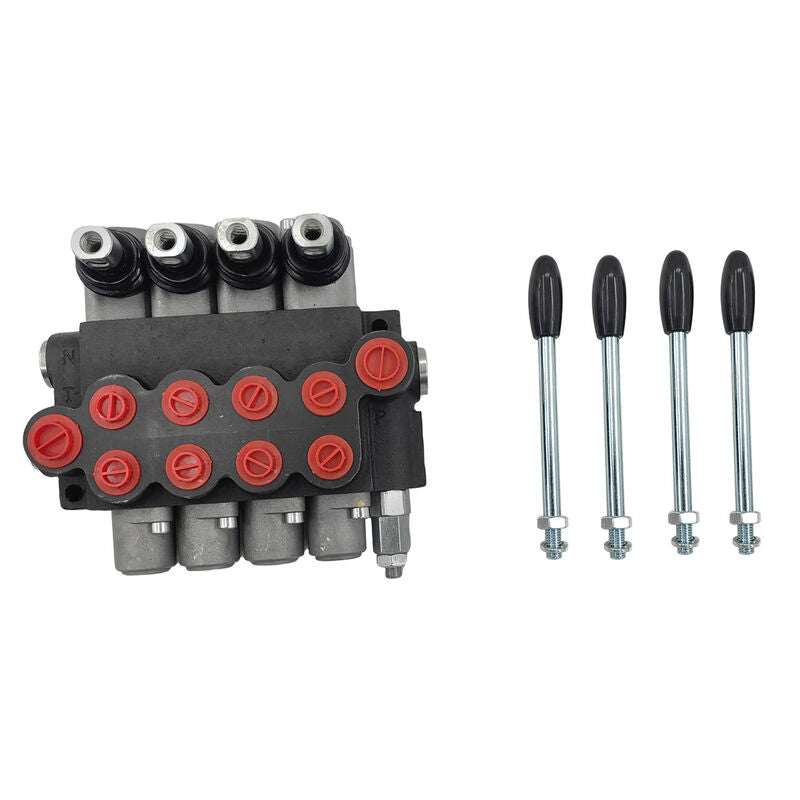

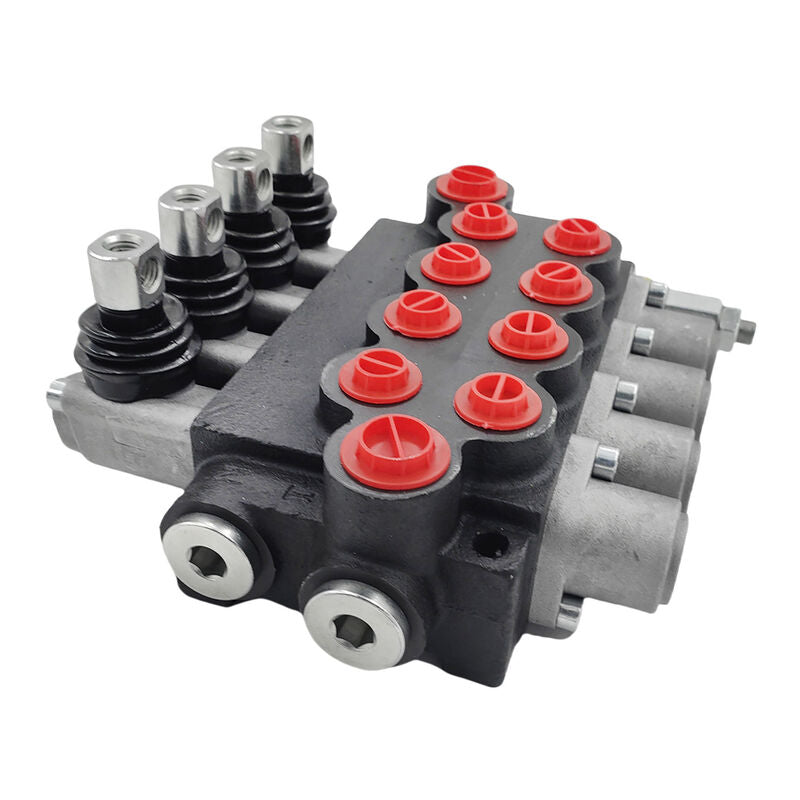

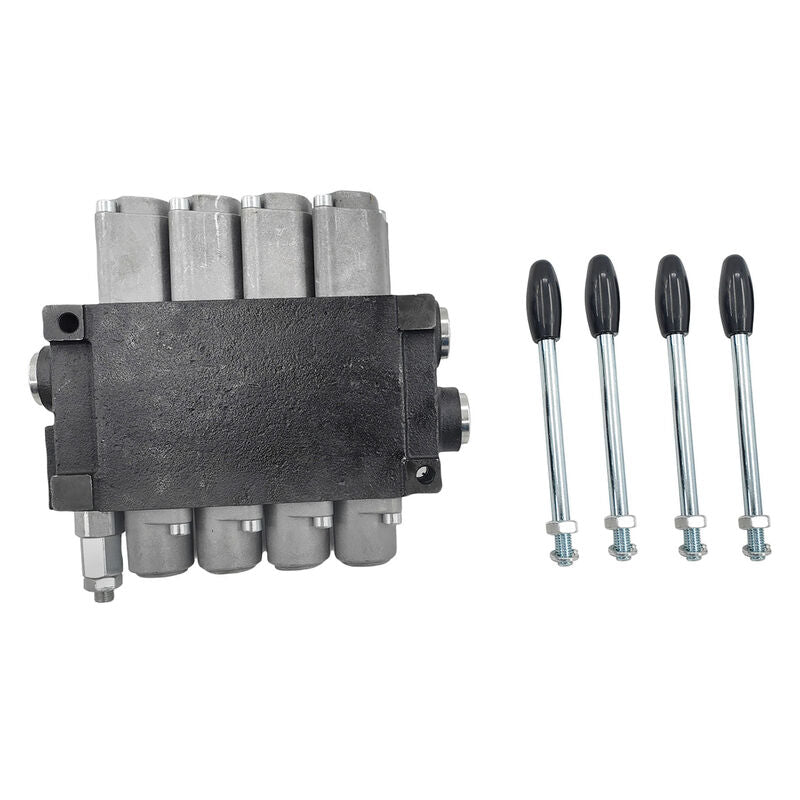

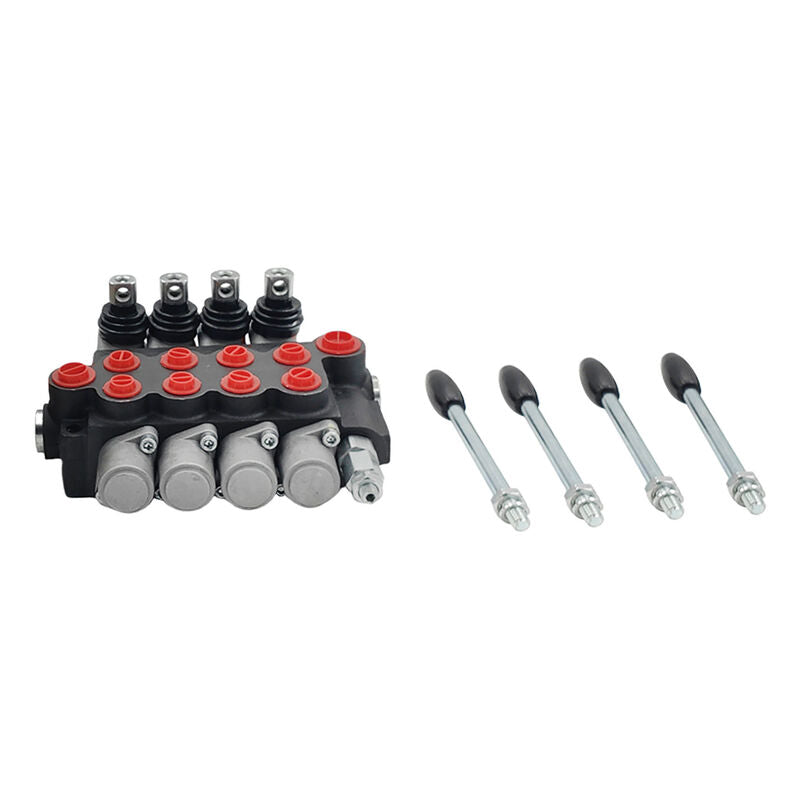

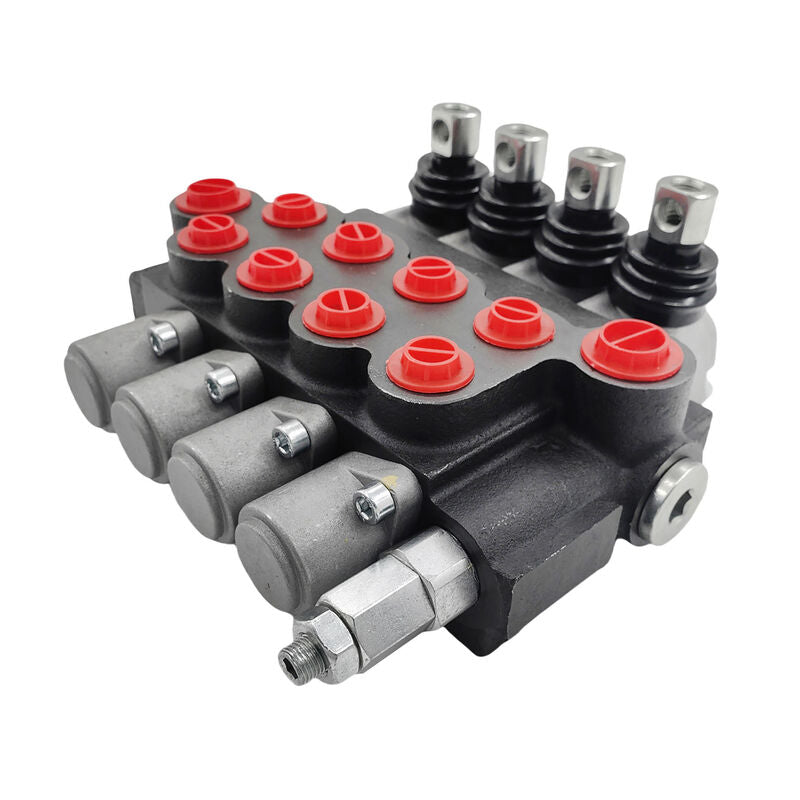

4 Spool P40 Hydraulic Directional Control Valve Fit For Tractor Loader Wood Chipper Excavator Forklift
Descriptions P40 Series Valves With Middle-High Pressure Monoblock Construction Is Developed Based On Europe Technology. Load Drop Check Valve For Each Spool. Inner Relief Valve: The Relief Valve Inside The Valve Body Is Able To Adjust The Hydraulic System Working Pressure. Oil Way: Parallel Circuit, Power Beyond Option Control Way: Manual Control, Pneumatic Control, Hydraulic And Electric Control For Optional. Valve Construction: Monoblock Construction, 1-6 Levers. Spools - Double Acting A & B Ports Blocked In Neutral (Other Spools On Request) Control Type - Manual And Detent, Pneumatic Control, Electric And Pneumatic Control, Hydraulic And Electric Control Available On Request. Technical
Specifications & Dimensions
- Type: P40 series Hydraulic valves Nominal Flow: 40L/min Max Flow: 50L/min Rated Pressure: 200bar Max Pressure: 250bar
- Ports: P and T Ports = 1/2" (BSPP), A and B Ports = 3/8" (BSPP) Control
- Type: Manual - Spring Centred (Detent, pneumatic, hydraulic, electro-hydraulic on r
Please compare the part numbers, specifications and images with your original component before ordering.
