Description

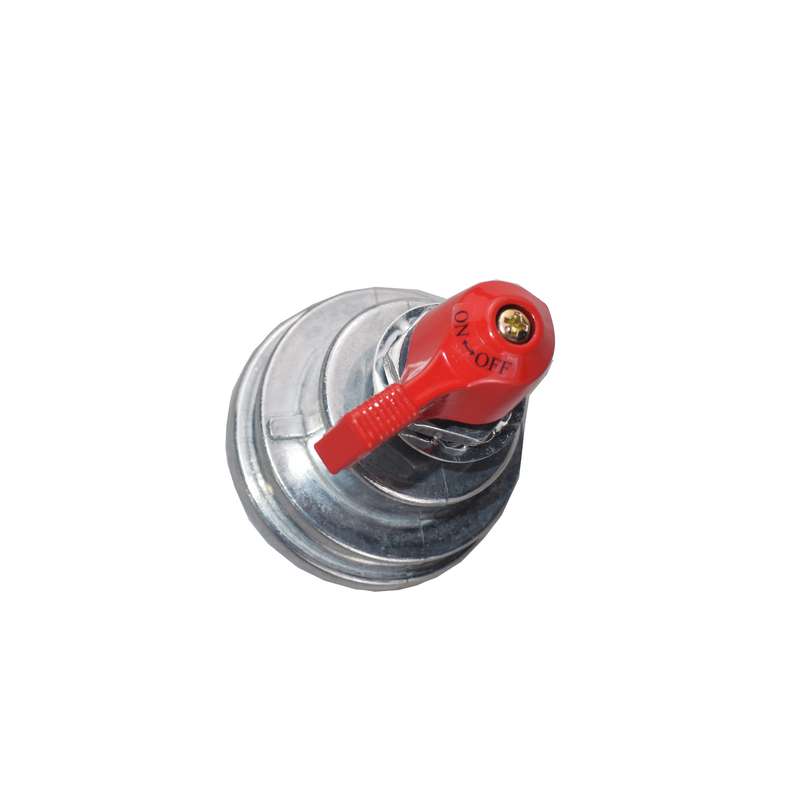

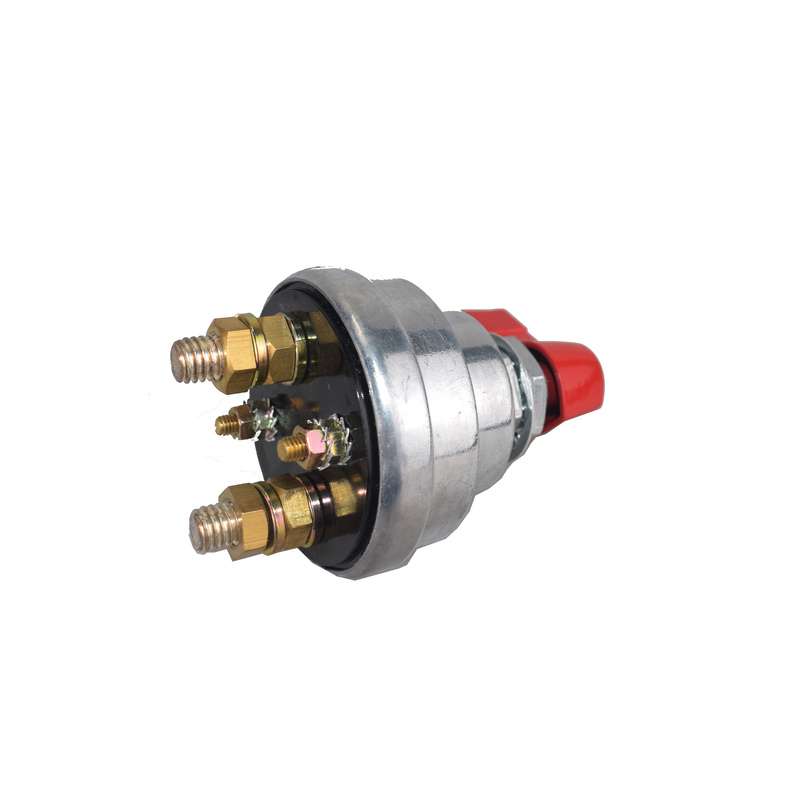

This Master Disconnect Switch Is Made To Fit For Alternator/Generator Field Circuits And Features An Indexing Post To Help Align The Switch And Prevent Rotation. It Has A Mount Opening With A Diameter Of 19mm. Among The Wide Range Of Narva Battery Switches, You'll Be Able To Find One Perfect For Your Own Desired Application. They Are All Made By High-Quality,Reliable And Longlasting Material.
Specification
Mounting opening: 19mm Diameter
Large Terminals:
1000A at 12V For 20 Seconds
500A at 24V For 20 Seconds
180A at 12V Continuous Load Max
90A at 24V Continuous Load Max
Small Terminals:
20A at 12V Continuous Load Max
10A at 24V Continuous Load Max
OEM Number
61075
Package
1 x Battery Master Switch Lever
| SKU | BMSL-001 |
| Brand | Aftermarket AUTOPARTS |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.115m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000563000m3 |
