Pair CV Joint Axle Drive Shaft Fit For Suzuki Grand Vitara X90 2.5L V6 1998-2005
Specifications
Left CV Shaft
Length (Compressed): 532mm
Spline Count - Outer/Wheel Side: 26T

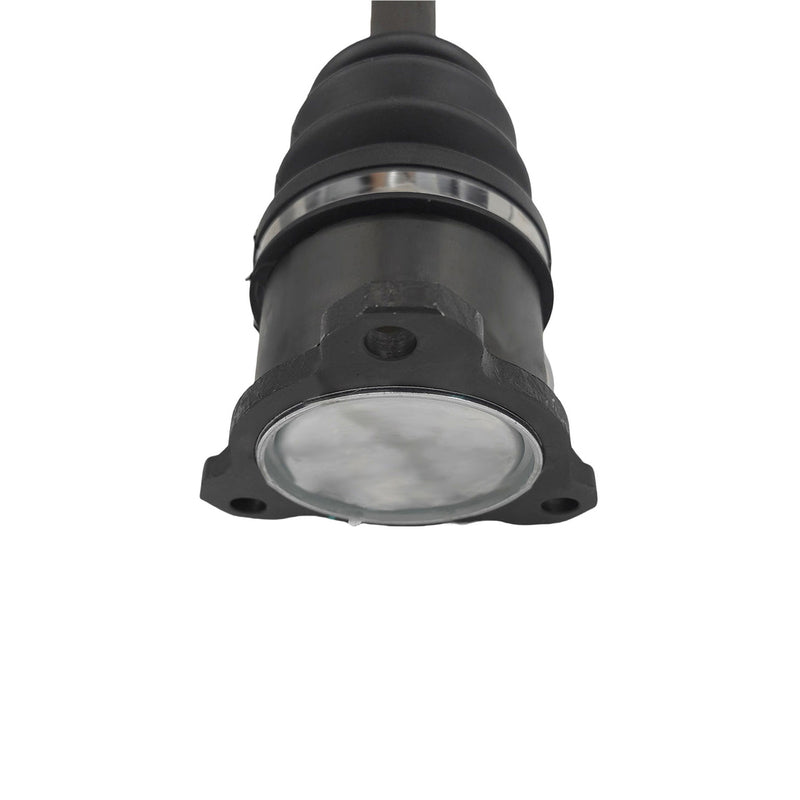

Inboard Joint Type Bolt On - 3 Flange Diameter: 105mm
Bolt Hole Diameter: 10.4mm
3 Bolt Flange Outer Diameter: 126.5mm
Right CV Shaft
Length (Compressed): 607mm
Spline Count - Outer/Wheel Side: 26T
Spline Count - Inner/Diff Side: 26T
Fitment
Fit For Suzuki Vitara JLX, JX 1.6L G16B SE416 & 2.0L H20A SV620 12/1994 - 04/2000
Fit For Suzuki Grand Vitara Sports, Slalom, Freestyle & Limited 2.0L J20A SQ420 & V6 2.5L H25A SQ625 04/1998 - 08/2005
Fit For Suzuki X90 1.6l G16B SZ416 1995 - 1998
Package

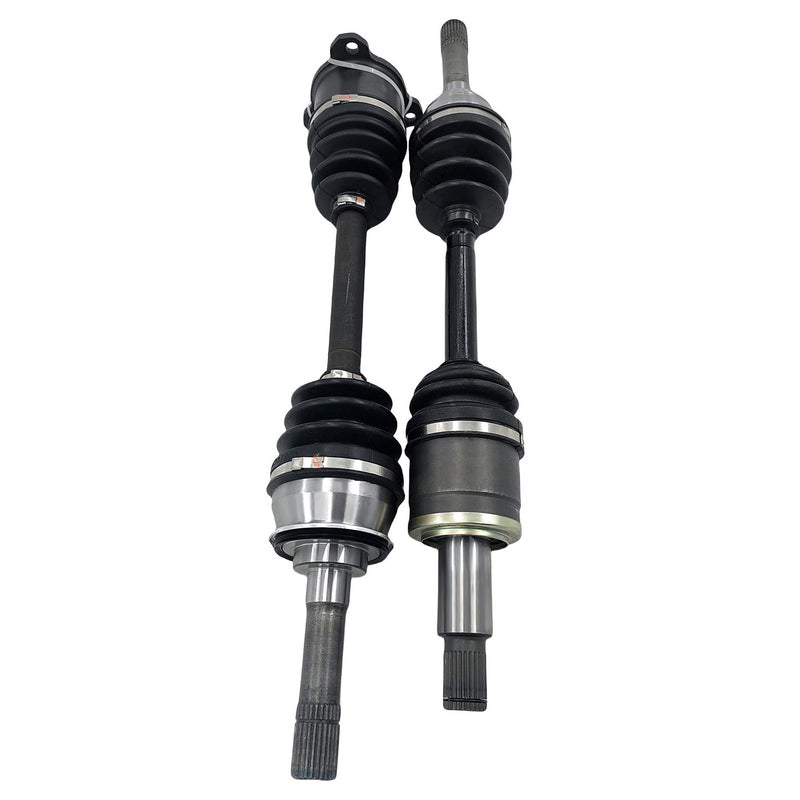

2 x CV Joint Drive Shafts (Front Left + Right Hand Side)
| SKU | CVS-SU007-2PCS |
| Brand | AUTOPARTS |
| Shipping Weight | 17.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.150m |
| Shipping Length | 0.750m |
| Shipping Cubic | 0.028125000m3 |
