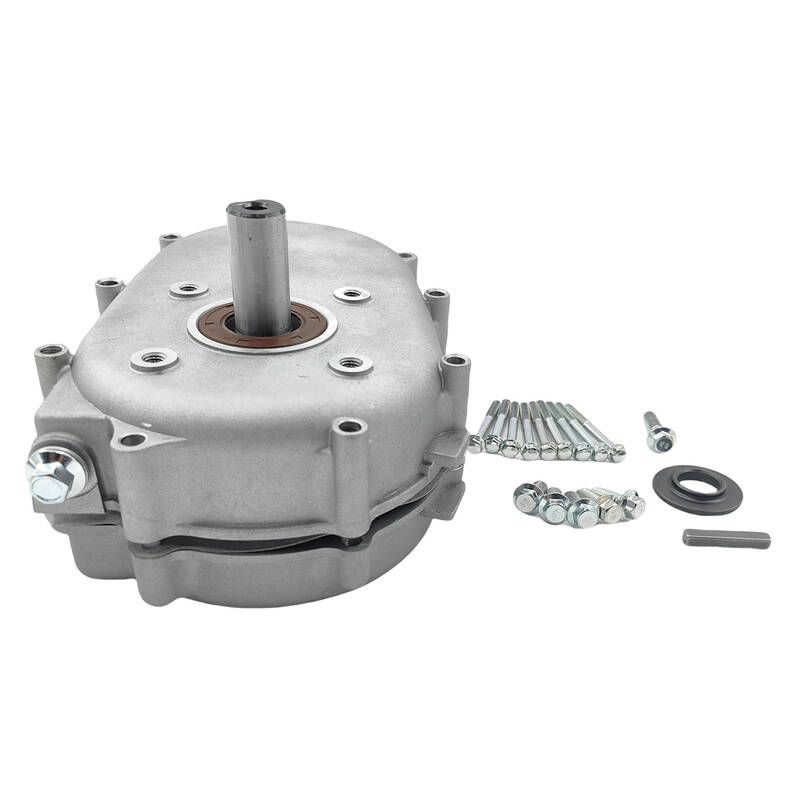

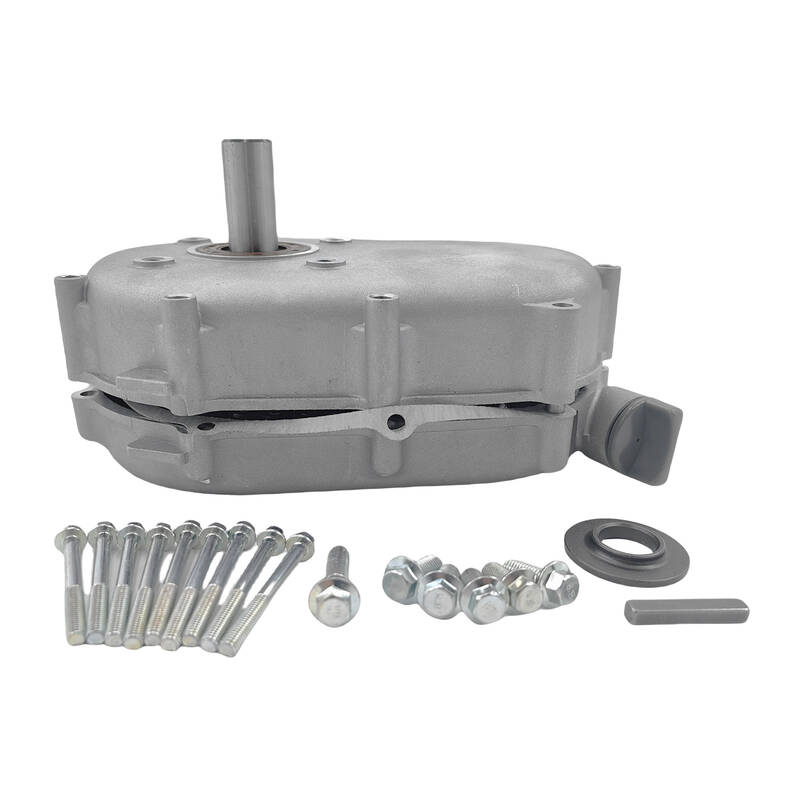

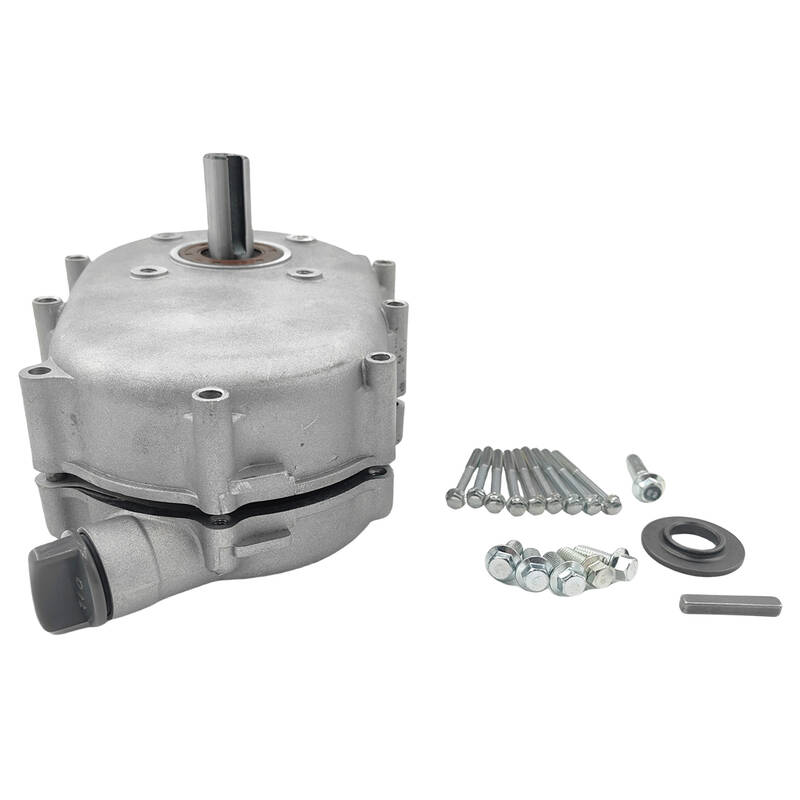

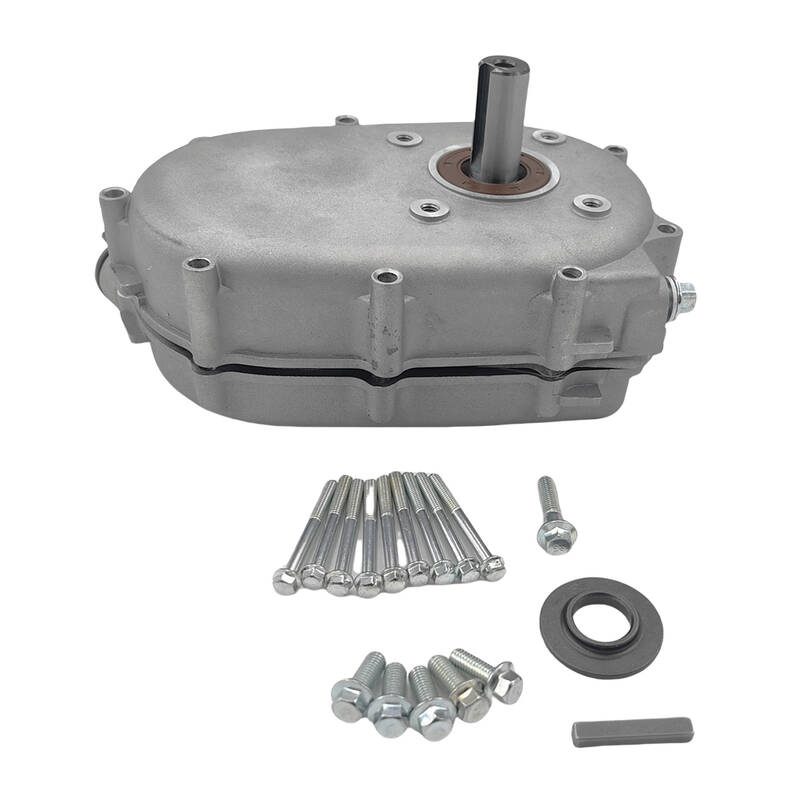

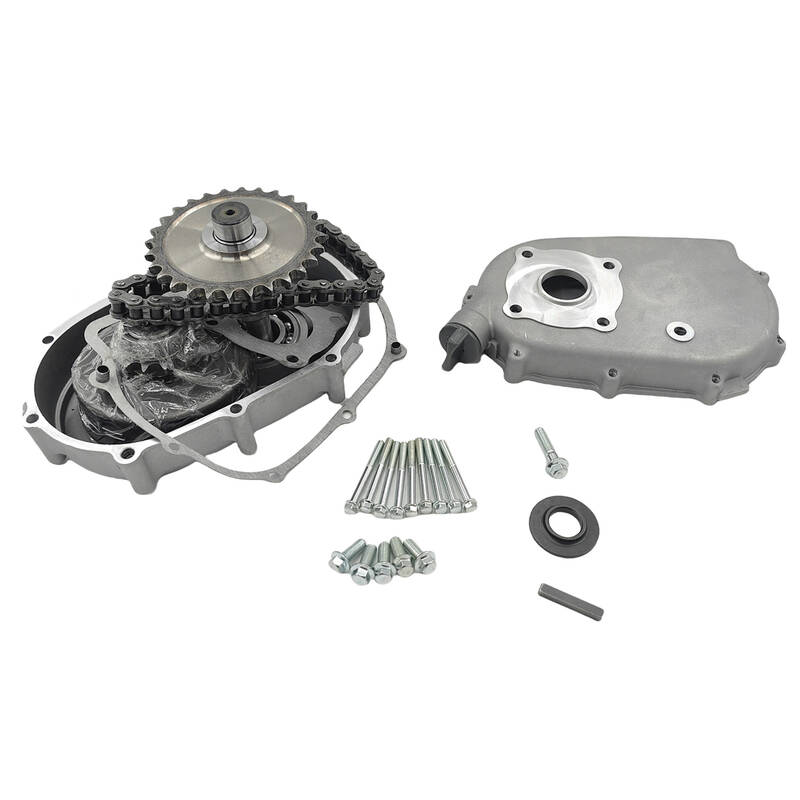

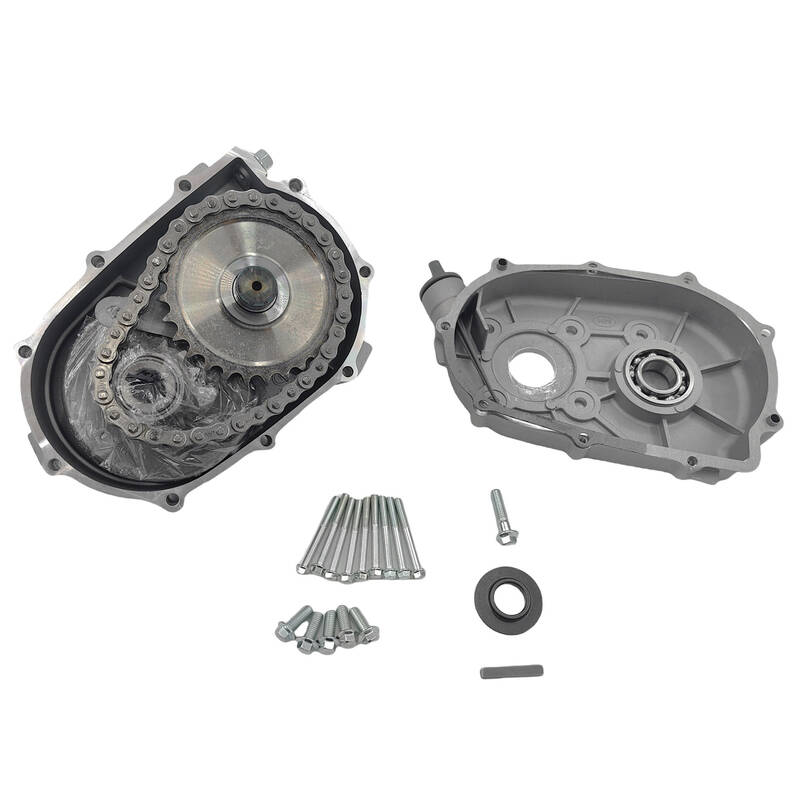

Wet Clutch 2:1 Reduction Gearbox Fit For Honda GX240 GX270 GX390 188F 177F 190F Gokart Engine

Specification

Type?2:1 Reduction

Input Shaft?20 mm Diameter, 50 mm Long

Input Shaft Keyway?5 mm

Input Mounting Holes?65.1 mm Square

Output Shaft?22 mm Diameter, 50 mm Long

Output Shaft Keyway?7 mm

Output Mounting Holes?70 mm Square

OEM Part Number

Honda GX240

Note

The Gearbox Is Supplied Without Oil, And Requires Oil Before Use. This Is Typically The Same As You Would Use In The Engine Sump i.e An SAE30 4-Stroke Small Engine Oil.

Fitment

Fit For Honda GX240 - GX390 Series And Most 9hp To 13hp Clone Engines With A 25mm Diameter Output Shaft And 60mm Length. Also Known As The L-Type PTO Shaft Option.

Note:A 60 mm Long, 25 mm Diameter Crankshaft Input Is Required, With An Output To a 22 mm Shaft, Also Known As An R-Type PTO Shaft.

Only For 88.5mm Oil Cap, Not For 79.5mm

Package

1 Set x Wet Clutch
